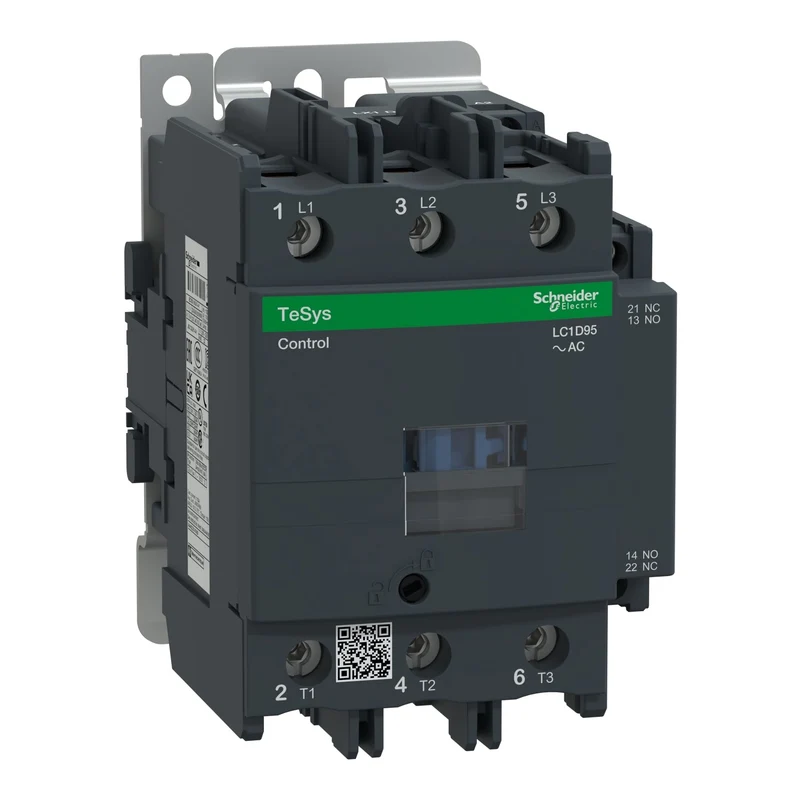

Schneider LC1D95P7 TeSys D Contactor 3P 3NO 95A 25kW 230V AC Coil

The Schneider Electric LC1D95P7 is a 3-pole AC contactor from the TeSys D range, rated at 95 A for AC-3 duty. It is designed for switching three-phase induction motors in industrial power circuits and operates with a 230 V AC, 50/60 Hz coil.

• Reference: LC1D95P7
• Range: TeSys D
• Type: 3-pole contactor, contact composition 3 NO
• Rated operational current (Ie): 95 A (AC-3, < =440 V, at < 60 °C)
• Utilisation category: AC-3
• Rated voltage (Ue): < =690 V AC, 25–400 Hz
• Motor power (AC-3): 25 kW at 220–230 V AC, 50 Hz
• Coil voltage: 230 V AC, 50/60 Hz
