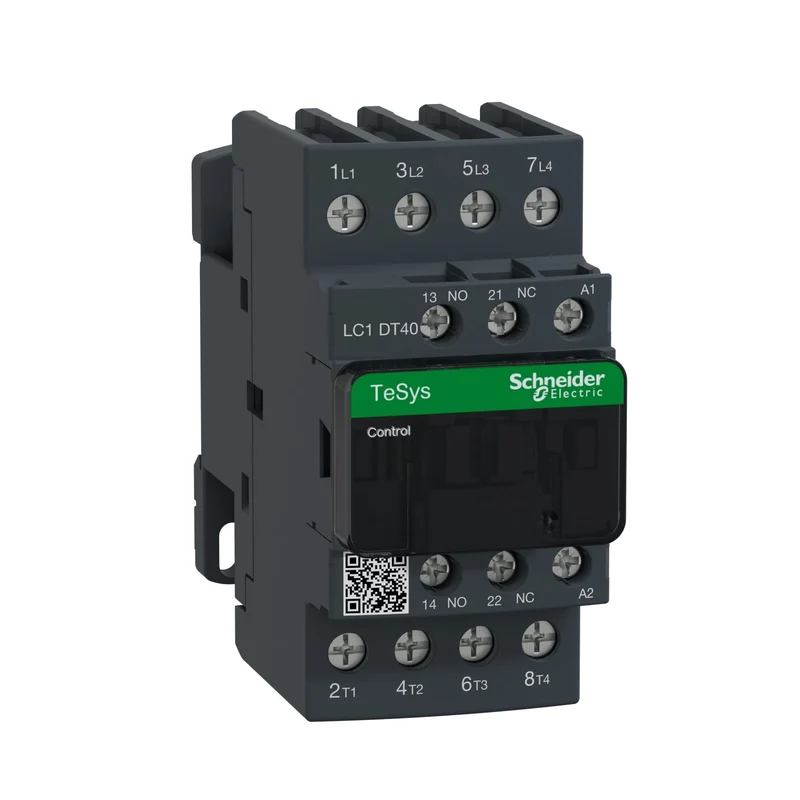

Schneider LC1DT40P7 TeSys LC1D Contactor 4P 4NO 40A 230V AC Coil

The LC1DT40P7 is a 4-pole TeSys D series contactor from Schneider Electric, designed for AC-1 utilisation category switching applications.

• Reference: LC1DT40P7
• Range: TeSys D
• Model: LC1D
• Poles: 4P
• Contact composition: 4 NO
• Rated operational current (Ie): 40 A at ≤440 V AC (AC-1, < 60 °C)
• Utilisation category: AC-1
• Coil voltage: 230 V AC 50/60 Hz
• Rated voltage (Ue): ≤690 V AC, 25…400 Hz
