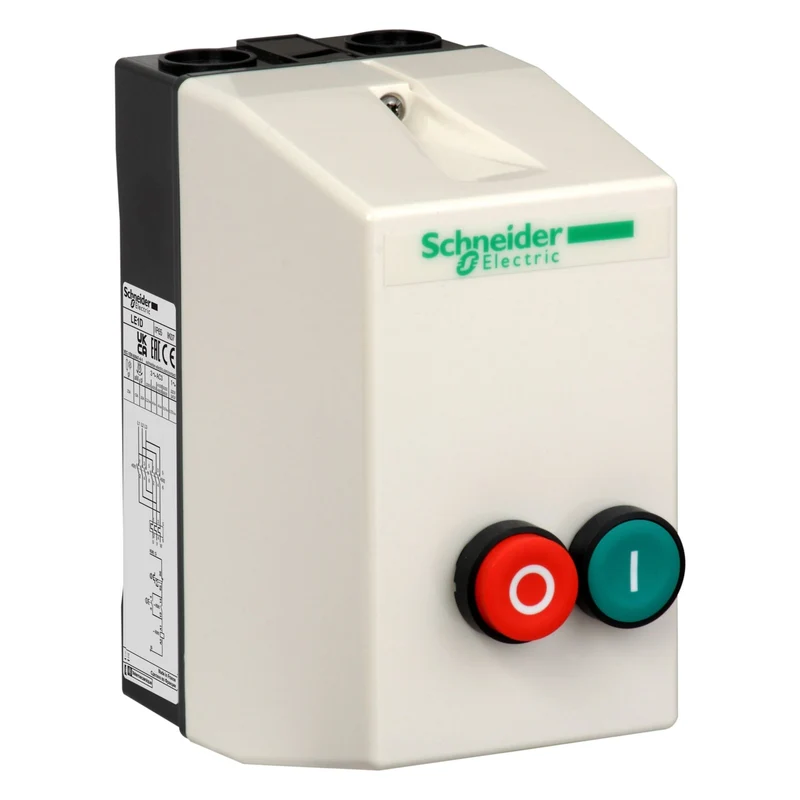

Schneider LE1D12P7 TeSys LE Enclosed DOL Starter 12 A 230V AC Coil

The Schneider Electric LE1D12P7 is an enclosed direct-on-line (DOL) starter from the TeSys LE range, designed for standard motor control applications. It provides a conventional free air thermal current (Ith) of 12 A and supports motor loads up to 5.5 kW at 380/400 V AC. The unit includes one LC1D contactor and two push-buttons (green start, red stop/reset), with a 230 V AC 50/60 Hz control coil.

Technical specifications:

• Commercial reference: LE1D12P7
• Manufacturer: Schneider Electric
• EAN: 3389110541359
• Series / range: TeSys LE
• Product type: Enclosed DOL starter
• Utilisation category: AC-3
• Conventional free air thermal current (Ith): 12 A
• Control circuit voltage (Uc): 230 V AC 50/60 Hz
• Motor power: 3 kW at 220/230 V AC, 5.5 kW at 380/400 V AC, 5.5 kW at 415/440 V AC, 7.5 kW at 500 V AC, 7.5 kW at 660/690 V AC
• Control type: Push-button start (green I), push-button stop/reset (red O)
• Cable entry: 2 x ISO20 top, 2 x ISO20 bottom
• Dimensions (WxHxD): 88 x 166 x 128.5 mm
• Weight: 0.92 kg
• IP degree of protection: IP65 (IEC 60529)
• IK degree of protection: IK07 (IEC 60529)
• Operating temperature: -5 to 40 °C
• Housing material: Polycarbonate
• Standards: IEC 60947-4-1, UL 60947-4-1
• Certifications: CB Scheme, UL, CE, UKCA
• Thermal overload relay: Ordered separately

Features and benefits:

• IP65-rated polycarbonate enclosure provides protection against dust and water ingress, suitable for harsh environments
• Integrated green start and red stop/reset push-buttons allow direct operator control without additional components
• Wide motor power compatibility from 3 kW at 230 V up to 7.5 kW at 690 V AC covers multiple supply voltages
• IK07 impact resistance rating ensures durability in industrial environments
• Compact dimensions of 88 x 166 x 128.5 mm allow installation in space-constrained locations
• Compliant with IEC 60947-4-1 and UL 60947-4-1, with CE and UKCA marking for European and UK markets

Applications:

• Direct-on-line starting of three-phase AC motors in industrial machinery and equipment
• Motor control in pumping stations, ventilation systems, and conveyor drives
• Outdoor or wash-down environments where IP65 protection is required
• Control panels requiring a self-contained enclosed starter solution

Compliant with IEC 60947-4-1 and UL 60947-4-1. Part of the Schneider Electric TeSys LE range.

Also known as: Schneider LE1D12P7, Schneider Electric LE1D12P7, TeSys LE enclosed DOL starter, direct-on-line motor starter 12 A.
