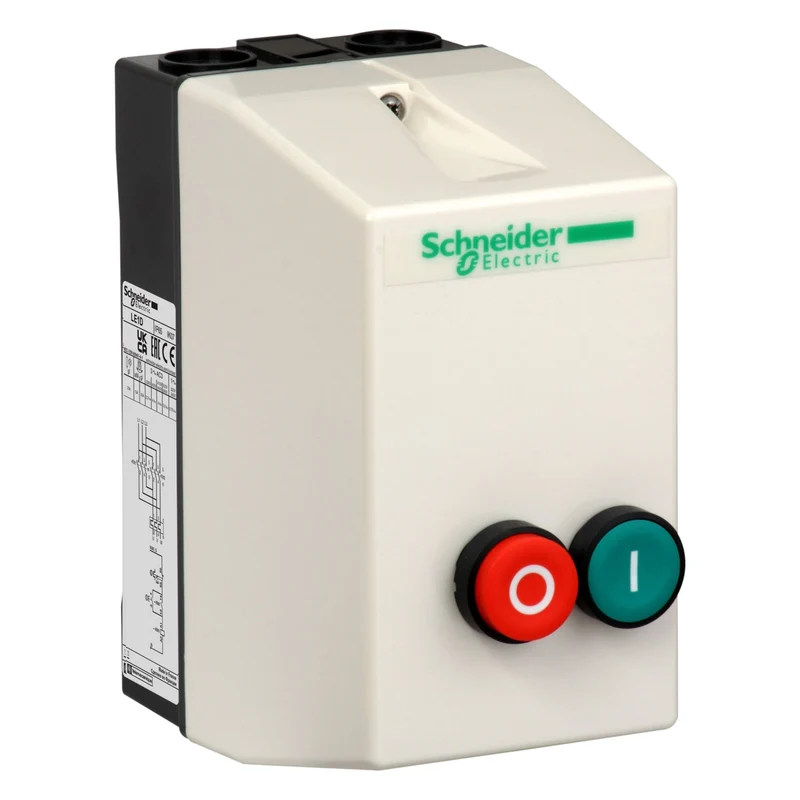

Schneider LE1D18P7 TeSys LE Enclosed DOL Starter 18 A 230V AC Coil

The Schneider Electric LE1D18P7 is an enclosed direct-on-line (DOL) starter from the TeSys LE range, designed for standard motor starting applications. It provides up to 7.5 kW at 380/400 V AC and features a 230 V AC control coil with integrated green start and red stop/reset push-buttons. The unit ships as a self-contained enclosure with a contactor included and thermal overload relay ordered separately.

Technical specifications:

• Commercial reference: LE1D18P7
• Manufacturer: Schneider Electric
• EAN: 3389110541366
• Series / range: TeSys LE
• Product type: Enclosed DOL starter
• Device short name: LE1D
• Utilisation category: AC-3
• Conventional free air thermal current (Ith): 17 A
• Control circuit voltage (Uc): 230 V AC 50/60 Hz
• Motor power ratings: 7.5 kW at 380/400 V AC, 9 kW at 415 V AC, 9 kW at 440 V AC, 10 kW at 500 V AC, 10 kW at 660/690 V AC, 4 kW at 220/230 V AC
• Control type: Push-button start (green I), push-button stop/reset (red O)
• Cable entries: 2x ISO20 top, 2x ISO25 top, 2x ISO20 bottom, 2x ISO25 bottom
• Enclosure material: Polycarbonate
• Width: 101 mm
• Height: 201 mm
• Depth: 153.5 mm
• Weight: 1.015 kg
• IP protection rating: IP65 per IEC 60529
• IK protection rating: IK07 per IEC 60529
• Operating temperature: -5 to 40 °C
• Standards: IEC 60947-4-1, UL 60947-4-1
• Certifications: CB Scheme, UL, CE, UKCA

Features and benefits:

• IP65-rated polycarbonate enclosure provides protection against dust and water jets, suitable for harsh environments
• Integrated green start and red stop/reset push-buttons allow direct local control without additional accessories
• Multiple cable entry options (ISO20 and ISO25, top and bottom) offer flexible wiring arrangements
• Supports a wide range of motor power ratings from 4 kW up to 10 kW across standard supply voltages
• Carries CE, UKCA, UL, and CB Scheme certifications for international market compliance

Applications:

• Direct-on-line starting of three-phase motors in industrial machinery and production equipment
• Motor control in pumping stations, fans, and compressors requiring enclosure-level protection
• Outdoor or wash-down environments where IP65 ingress protection is required
• Machine builder applications needing a compact, pre-wired starter solution

Compliant with IEC 60947-4-1 and UL 60947-4-1. Part of the Schneider Electric TeSys LE range.
