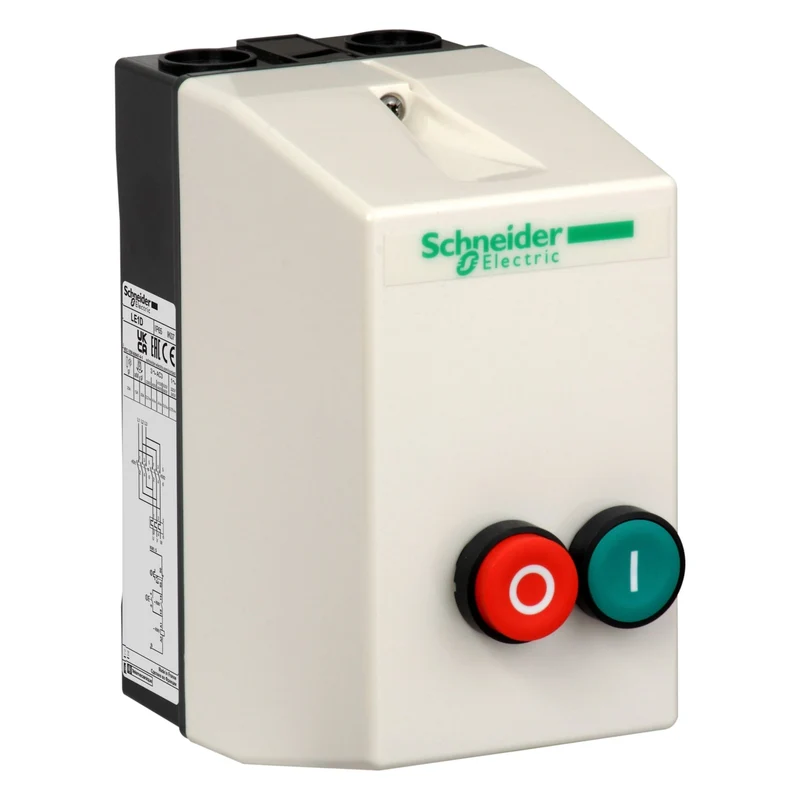

Schneider LE1D25P7 TeSys LE Enclosed DOL Starter 25 A 230V AC Coil

The Schneider Electric LE1D25P7 is an enclosed DOL (Direct-On-Line) starter from the TeSys LE range, designed to start and protect three-phase AC motors up to 11 kW at 400V. It includes one LC1D contactor and two operator push-buttons within an IP65-rated polycarbonate enclosure, making it suitable for demanding industrial environments.

Technical specifications:

• Commercial reference: LE1D25P7
• Manufacturer: Schneider Electric
• EAN: 3389110541373
• Series / range: TeSys LE
• Product type: Enclosed DOL starter
• Utilisation category: AC-3
• Motor power: 5.5 kW at 220/230V AC; 11 kW at 380/400V AC; 11 kW at 415V AC; 11 kW at 440V AC; 15 kW at 500V AC; 15 kW at 660/690V AC (50/60 Hz)
• Control circuit voltage [Uc]: 230V AC 50/60 Hz
• Conventional free air thermal current [Ith]: 22A
• Control type: Green start push-button (I), red stop/reset push-button (O)
• Cable entries: 2 x ISO20 and 2 x ISO25, top and bottom
• Dimensions (WxHxD): 101 x 201 x 153.5 mm
• Weight: 1.015 kg
• IP protection: IP65 per IEC 60529
• IK protection: IK07 per IEC 60529
• Operating temperature: -5...40°C
• Enclosure material: Polycarbonate
• Standards: IEC 60947-4-1, UL 60947-4-1
• Certifications: CE, UKCA, UL, CB Scheme

Features and benefits:

• IP65 polycarbonate enclosure provides protection against dust and water jets, suitable for harsh or wet locations
• Integrated green start and red stop/reset push-buttons allow direct local operator control
• Includes one LC1D contactor; thermal overload relay ordered separately for flexible overload protection configuration
• Multiple cable entry options (ISO20 and ISO25, top and bottom) support varied installation layouts
• Rated for AC-3 utilisation category, covering direct-on-line starting and stopping of squirrel-cage motors

Applications:

• Direct-on-line starting of three-phase motors in industrial machinery and production lines
• Pump and fan motor control in water treatment, HVAC, and building services
• Conveyor and compressor motor control in manufacturing and logistics facilities
• Motor control installations in outdoor or humid environments where IP65 protection is required

Compliant with IEC 60947-4-1 and UL 60947-4-1. Part of the Schneider Electric TeSys LE range.

Also known as: Schneider LE1D25P7, Schneider Electric LE1D25P7, TeSys LE enclosed motor starter, DOL starter 11kW 230V coil.
