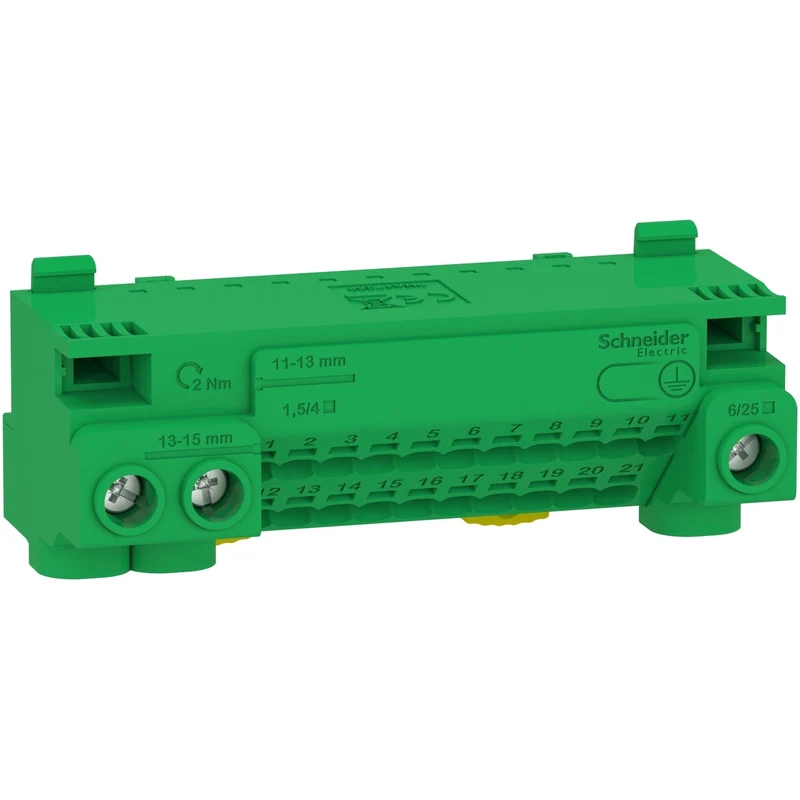

Schneider LGYT1E24 Electric LGYT1E24 Linergy Earth Terminal Block 24 Holes

The Schneider Electric LGYT1E24 is a Linergy earth terminal block with 24 connection points, combining screw and screwless (push-in) terminals for grounding conductors in distribution enclosures. Rated at 63 A and 440 V AC, it accommodates three 25 mm² and twenty-one 4 mm² earth conductors and is supplied with a jumper bar for linking to adjacent terminal blocks.

Technical specifications:

• Commercial reference: LGYT1E24
• Manufacturer: Schneider Electric
• EAN: 3606489580001
• Series / range: Linergy
• Product type: Earth terminal block
• Rated current: 63 A
• Rated voltage: 440 V AC
• Connection points: 24 (3 x 25 mm² screw terminals + 21 x 4 mm² screwless terminals)
• Screw terminals: 3 x up to 25 mm² (rigid, flexible, semi-rigid conductors)
• Screwless terminals: 21 x up to 6 mm² (rigid, flexible, flexible with cable end, semi-rigid)
• Dimensions (W x H x D): 94.2 x 45.5 x 40.5 mm
• Mounting: Panel or surface
• Color: Green
• Compatible enclosures: Resi9, Pragma, Kaedra
• Included accessories: 1 jumper bar
• Storage temperature: -25...60 °C
• Weight: 128 g

Features and benefits:

• 24 earth connection points consolidated in a single compact terminal block
• Dual connection technology combines screw and screwless (push-in) terminals in one unit
• Supplied with a jumper bar enabling connection to adjacent earth terminal blocks
• Green color provides instant visual identification of earth conductors
• Compatible with Resi9, Pragma, and Kaedra Schneider Electric enclosures
• Accepts rigid, flexible, and semi-rigid conductors across a wide cross-section range

Applications:

• Earth distribution in residential consumer units and distribution boards
• Grounding bus assembly in small commercial building enclosures
• Central earth terminal point in Resi9, Pragma, or Kaedra panel assemblies
• Multi-circuit earthing in flush-mounted or surface-mounted enclosures

Part of the Schneider Electric Linergy range, designed for residential and small commercial building installation applications.

Also known as: Schneider LGYT1E24, Schneider Electric LGYT1E24, Linergy earth terminal block, earth bus terminal block.
