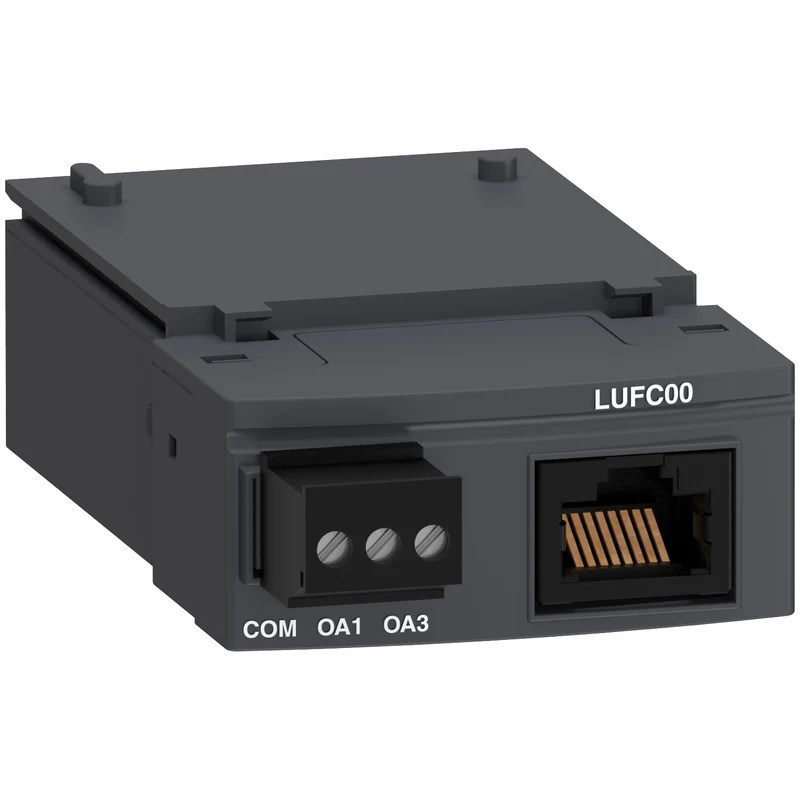

Schneider LUFC00 TeSys U Parallel Wiring Module

The Schneider Electric LUFC00 is a parallel wiring module designed for use with TeSys U starters. It enables parallel communication wiring, providing a current consumption of just 1 mA. Compatible with multiple TeSys U control units, it installs via plug-in mounting on the front face of the device.

Technical specifications:

• Commercial reference: LUFC00
• Manufacturer: Schneider Electric
• EAN: 3389110365504
• Series / range: TeSys
• Device short name: LUF
• Product type: Parallel wiring module
• Communication type: Parallel
• Current consumption: 1 mA
• Mounting method: Plug-in
• Mounting location: Front face
• IP protection rating: IP20 conforming to IEC 60529
• Product weight: 0.045 kg
• Compatible control units: LUCM, LUCD, LUCA, LUCL, LUCB, LUCC
• Warranty: 18 months

Features and benefits:

• Plug-in installation on the front face of TeSys U starters for quick, tool-free assembly
• Parallel communication type allows straightforward wiring integration
• Ultra-low current consumption of 1 mA minimises load on the control circuit
• Compatible with a wide range of TeSys U control units (LUCM, LUCD, LUCA, LUCL, LUCB, LUCC)
• IP20 protection rating per IEC 60529 suitable for panel installation
• Compact and lightweight at 0.045 kg for easy integration into control panels

Applications:

• Motor control panels using TeSys U starters requiring parallel wiring communication
• Industrial automation cabinets where TeSys U control units are deployed
• Machine builder panels integrating multiple TeSys U starter configurations
• Control system upgrades adding parallel communication capability to existing TeSys U installations

Compliant with IEC 60529 (IP protection). Part of the Schneider Electric TeSys range.

Also known as: Schneider LUFC00, Schneider Electric LUFC00, TeSys U parallel wiring module, LUF parallel communication module.
