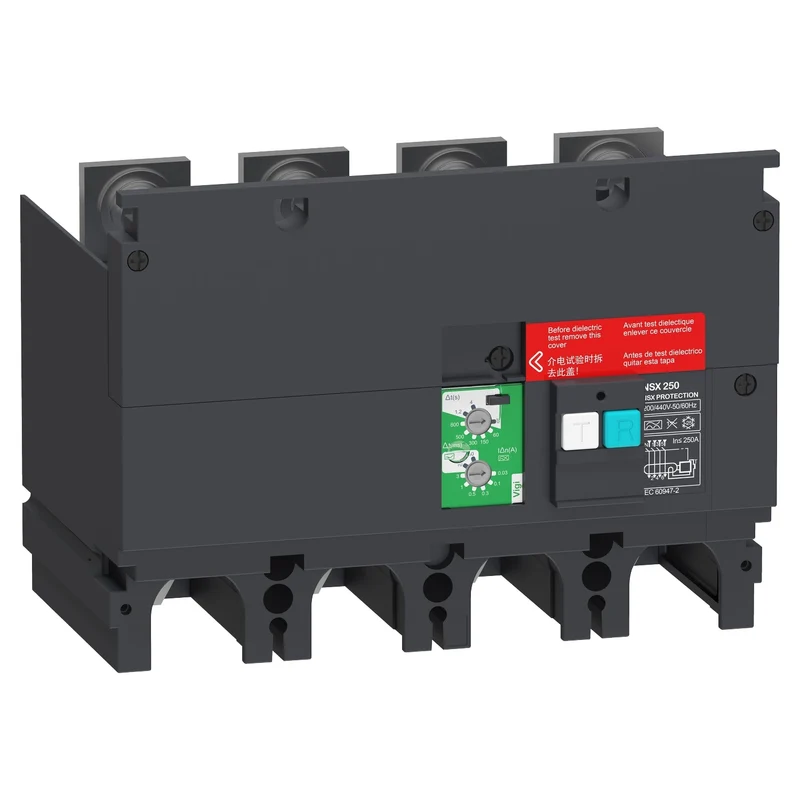

Schneider LV429493 VigiPacT ComPacT NSX 250 RCD Module 4P 250A Class A

The Schneider Electric LV429493 is a VigiPacT residual current add-on module for the ComPacT NSX 250 range. It mounts on compatible NSX 250 moulded-case circuit breakers to add Class A earth-leakage protection at rated voltages of 200 to 440 V AC.

• Reference: LV429493
• Range: ComPacT NSX
• Model: VigiPacT
• Type: Vigi add-on RCD module
• Poles: 4P
• Rated current (In): 250 A
• Adjustable sensitivity (IΔn): 30 mA to 30 A
• RCD class: Class A (IΔn 0.1 A)
• Rated voltage (Ue): 200–440 V AC, 50/60 Hz
• Standard: IEC 60947-2
