Schneider METSEPM5110 power meter PowerLogic PM5110

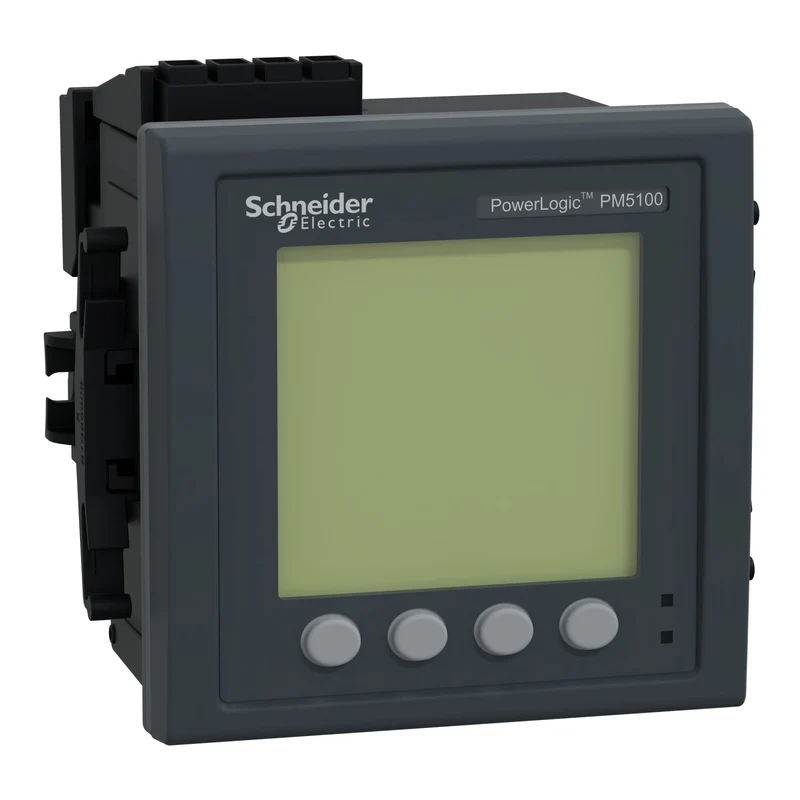

The Schneider Electric METSEPM5110 (PowerLogic PM5110) is a panel-mount power meter with Modbus communication designed for monitoring electrical energy consumption in single-phase and three-phase networks. It delivers power quality analysis up to the 15th harmonic, supports 33 configurable alarms, and achieves Class 0.5S active energy measurement accuracy.

Technical specifications:

• Commercial reference: METSEPM5110
• Manufacturer: Schneider Electric
• EAN: 3606480613982
• Series / range: PowerLogic PM5000
• Product type: Power meter (multimeter)
• Supply voltage: 90...450 V AC (45...65 Hz) / 100...300 V DC
• Rated current input: 1 A / 5 A
• Network type: 1P+N, 3P+N, 3P
• Measured voltage: 35...760 V AC phase-to-phase / 20...440 V AC phase-to-neutral
• Frequency range: 45...65 Hz
• Measurement accuracy: active energy +/- 0.5% (Class 0.5S), reactive energy +/- 2%, current +/- 0.5%, voltage +/- 0.5%
• Display: monochrome graphic LCD, 128 x 128 pixels
• Sampling rate: 64 samples/cycle
• Communication: Modbus RTU/ASCII and JBUS via RS485 (9.6, 19.2, 38.4 kbaud), 2500 V isolation
• Digital outputs: 1
• Mounting: panel mount (flush), frame bezel
• Dimensions (WxHxD): 96 x 96 x 72 mm
• Weight: 380 g
• IP rating: IP54 (display) / IP30 (rear), per IEC 60529
• Operating temperature: -25...70°C (meter) / -20...70°C (display)
• Storage temperature: -40...85°C
• Operating altitude: 2000 m CAT III
• Certifications: CE (IEC 61010-1), CULus (UL 61010-1)
• Connection: screw terminal blocks

Features and benefits:

• Power quality analysis up to the 15th harmonic for detailed load characterisation
• Class 0.5S active energy accuracy per IEC 62053-22:2020 for billing-grade sub-metering
• RS485 Modbus RTU/ASCII and JBUS communication with 2500 V galvanic isolation
• Data logging with precise time-stamped recording and min/max instantaneous value tracking
• Compact 96 x 96 mm panel-mount format with IP54 front protection

Applications:

• Electricity consumption monitoring in commercial and industrial installations
• Energy management in distribution boards and switchgear panels
• Sub-metering in building energy management systems via Modbus SCADA integration

Compliant with IEC 62053-22:2020, IEC 62052-11:2020, IEC 62053-23:2020, IEC 62052-31:2015, IEC 61557-12:2015, EN 50470-1, EN 50470-3, and UL 61010-1. Part of the Schneider Electric PowerLogic PM5000 range.

Also known as: Schneider METSEPM5110, Schneider Electric METSEPM5110, PowerLogic PM5110 power meter, PM5110 Modbus energy meter.
