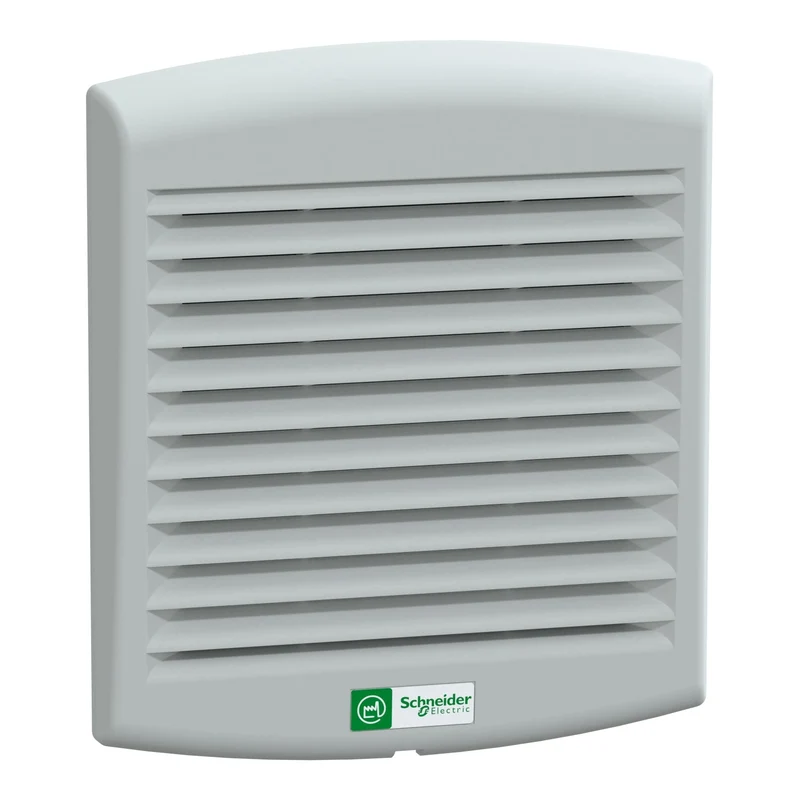

Schneider NSYCAG125LPF Outlet Grille Plast Cut Out 125x125mm External Dimension

The Schneider Electric NSYCAG125LPF is a plastic outlet grille for a 125 x 125 mm panel cutout, with external dimensions of 150 x 170 x 15 mm. Part of the ClimaSys CA range, it delivers IP54-rated ventilation and is designed for use with ClimaSys CV fans as a temperature control accessory within the ClimaSys ventilation system.

Technical specifications:

• Commercial reference: NSYCAG125LPF
• Manufacturer: Schneider Electric
• EAN: 3606480151538
• Series / range: ClimaSys CA
• Product type: Outlet grille
• Cutout dimensions: 125 x 125 mm
• External width: 150 mm
• External height: 170 mm
• External depth: 15 mm
• IP protection rating: IP54
• Material: Injection-molded thermoplastic (ASA PC)
• Color: Grey (RAL 7035)
• Mounting: Snap-on or with screws without nuts
• Composition: 1 supporting frame, 1 external part, 1 G2 M1 standard synthetic filter
• Compatible with: ClimaSys CV fan
• Warranty: 18 months

Features and benefits:

• IP54 rating provides protection against dust and water splashing
• Includes a G2 M1 standard synthetic filter to protect enclosure internals
• Injection-molded ASA PC thermoplastic for reliable mechanical durability
• Snap-on or screw-mount options allow flexible panel installation
• Grey RAL 7035 finish matches standard enclosure aesthetics
• Designed for direct compatibility with the ClimaSys CV fan range

Applications:

• Enclosure climate control installations using the ClimaSys ventilation system
• Exhaust air outlets in panels fitted with ClimaSys CV fans
• Temperature control accessory installations in electrical enclosures
• Industrial and commercial panel builds requiring IP54 filtered ventilation

Part of the Schneider Electric ClimaSys CA range of enclosure climate control accessories.
