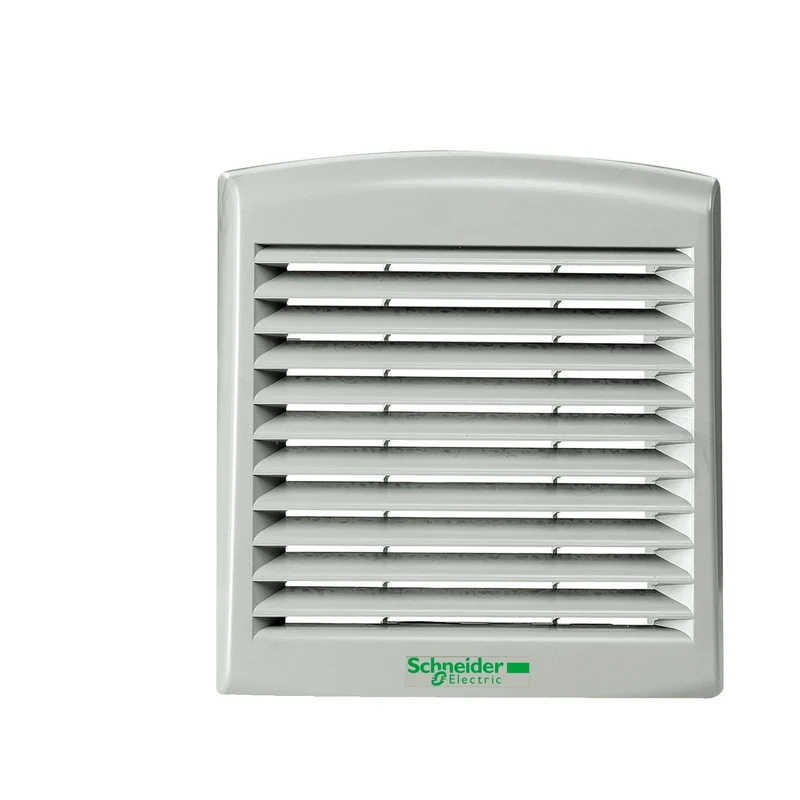

Schneider NSYCAG223LPF outlet grille plast cut out 223x223mm ext dim 268x248m...

The Schneider Electric NSYCAG223LPF is a plastic outlet grille for enclosure ventilation, featuring a 223 x 223 mm cutout and external dimensions of 268 x 248 mm. Rated IP54, it delivers filtered airflow while protecting enclosure interiors from dust and water ingress. Compatible with ClimaSys CV fans and Prisma P enclosures, it supports integrated enclosure climate management.

Technical specifications:

• Commercial reference: NSYCAG223LPF
• Manufacturer: Schneider Electric
• EAN: 3606480151545
• Series / range: ClimaSys CA
• Product type: Outlet grille
• IP protection rating: IP54
• Cutout dimensions: 223 x 223 mm
• External height: 268 mm
• External width: 248 mm
• External depth: 18 mm
• Material: Injection molded thermoplastic (ASA PC)
• Color: Grey (RAL 7035)
• Mounting: Screw-fixed (without nut) or snap-on
• Composition: 1 carrier frame, 1 external part, 1 G2 M1 standard synthetic filter
• Unit weight: 533 g
• Warranty: 18 months

Features and benefits:

• IP54 rating provides protection against dust ingress and water splashing
• Supplied with a G2 M1 standard synthetic filter for particulate filtration
• Dual mounting options - screw-fixed or snap-on - for flexible enclosure installation
• RAL 7035 grey ASA PC thermoplastic body for durability and UV resistance
• Free of SVHC substances (REACh compliant) and mercury-free

Applications:

• Outlet ventilation for industrial control panels and electrical enclosures
• Thermal management in Prisma P distribution boards
• Active forced ventilation systems paired with ClimaSys CV fans
• Enclosures installed in dusty or splash-prone industrial environments

Part of the Schneider Electric ClimaSys CA range for enclosure climate control and ventilation accessories.
