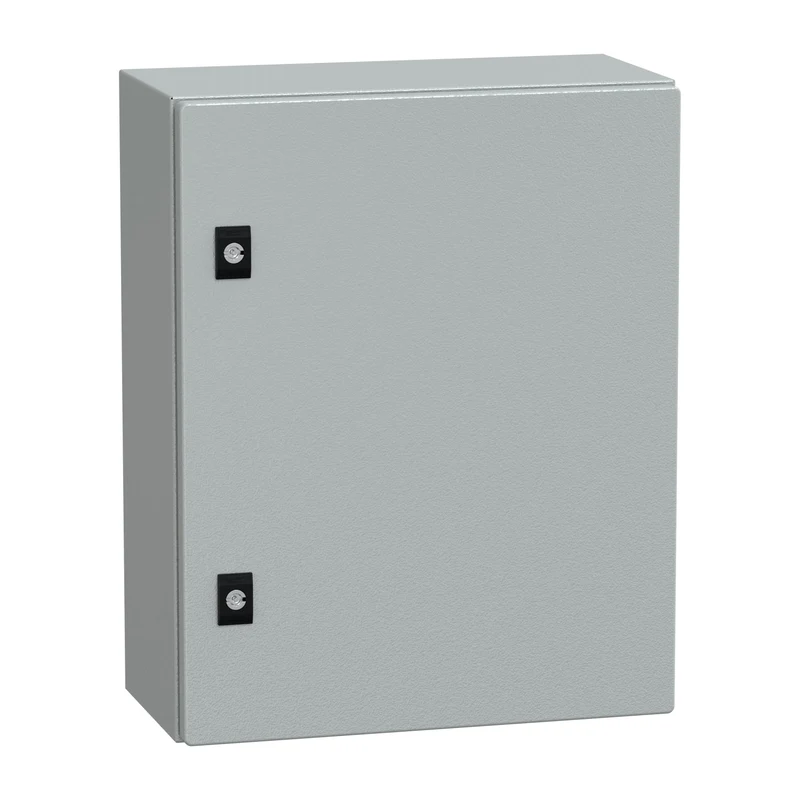

Schneider NSYCRN54200P PanelSet CRN Plain Door With Mounting Plate, H500xW400xD2

The Schneider Electric NSYCRN54200P is a PanelSeT CRN compact wall-mount enclosure with a plain door and mounting plate, measuring H500 x W400 x D200 mm. Rated IP66 and IK10, it delivers robust protection for multi-purpose electrical and control applications in demanding environments.

Technical specifications:

• Commercial reference: NSYCRN54200P
• Manufacturer: Schneider Electric
• EAN: 3606480212277
• Series / range: PanelSeT CRN
• Category: Compact enclosure
• Application: Multi-purpose
• Enclosure height: 500 mm
• Enclosure width: 400 mm
• Enclosure depth: 200 mm
• Installation type: Wall-mounting
• Door type: Plain
• Door opening: Reversible (120 degrees)
• Lock type: 3 mm double-bar lock
• IP protection: IP66 (IEC 60529)
• IK protection: IK10 (IEC 62262)
• Colour: Grey (RAL 7035)
• Enclosure material: Steel (epoxy-polyester powder finish)
• Mounting plate: Plain, galvanised steel
• Weight: 10.928 kg
• Standards: IEC 62208, UL, cUL
• Certifications: UL, cUL, DNV-GL
• Warranty: 18 months

Features and benefits:

• IP66-rated enclosure provides complete dust-tight and powerful water-jet protection for harsh environments
• IK10 impact resistance ensures reliable mechanical protection against accidental knocks and vandalism
• Reversible door with 120-degree opening allows flexible installation in confined spaces
• Body sides formed from a single folded section with back welded using double profile for a protected sealed area
• Removable door, cable gland plate, and mounting plate simplify installation and maintenance access
• 98% recyclability potential supports Schneider Electric sustainability commitments

Applications:

• Wall-mounted control and distribution panels in industrial facilities
• Outdoor or semi-exposed electrical enclosures requiring high ingress protection
• Machine control cabinets in manufacturing and automation environments
• Commercial building electrical infrastructure requiring robust mechanical protection

Compliant with IEC 62208, UL, and cUL standards. Part of the Schneider Electric PanelSeT CRN range.

Also known as: Schneider NSYCRN54200P, Schneider Electric NSYCRN54200P, Schneider PanelSeT compact enclosure IP66, Schneider wall-mount steel enclosure RAL7035.
