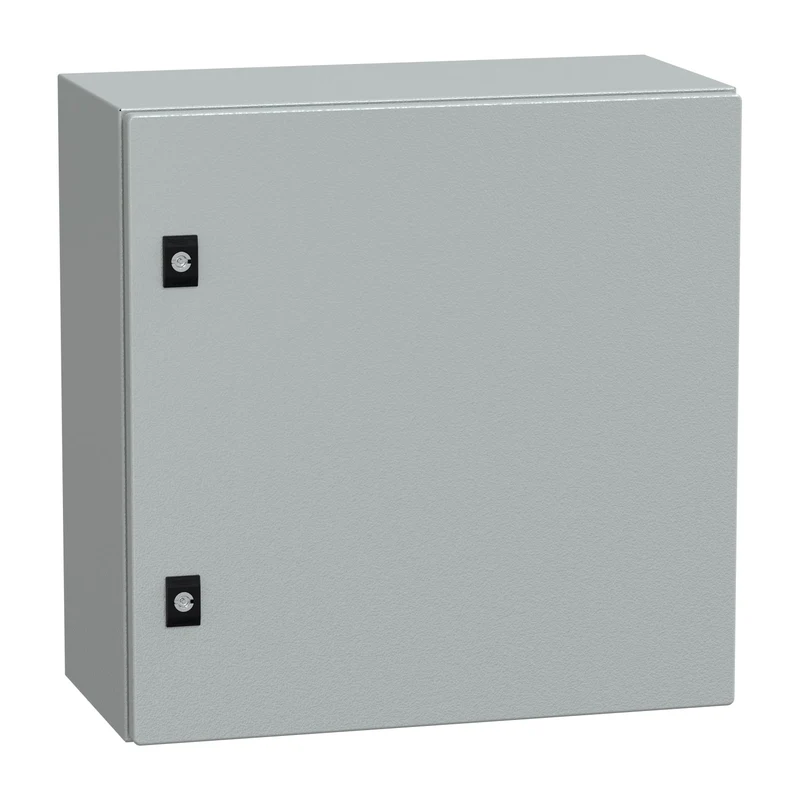

Schneider NSYCRN55250P PanelSet CRN Plain Door With Mounting Plate, H500xW500xD2

The Schneider Electric NSYCRN55250P is a PanelSeT CRN compact enclosure with a plain door and mounting plate, designed for multi-purpose electrical installation applications. It offers dimensions of H500 x W500 x D250 mm with IP66 protection and IK10 impact resistance, making it suitable for demanding environments. The enclosure ships complete with body, cable gland plate, door with lock, and a galvanised steel mounting plate.

Technical specifications:

• Commercial reference: NSYCRN55250P
• Manufacturer: Schneider Electric
• EAN: 3606480212215
• Series / range: PanelSeT CRN
• Category: Compact enclosure
• Application: Multi-purpose
• Nominal height: 500 mm
• Nominal width: 500 mm
• Nominal depth: 250 mm
• Installation type: Wall-mounting
• Door type: Plain, reversible opening (120 degrees)
• Lock type: 3 mm double-bar lock
• Enclosure material: Steel with epoxy-polyester powder finish
• Mounting plate material: Galvanised steel
• Colour: Grey (RAL 7035)
• IP degree of protection: IP66 (IEC 60529)
• IK degree of protection: IK10 (IEC 62262)
• Weight: 13.832 kg
• Standards: IEC 62208, UL, cUL
• Certifications: UL, cUL, DNV-GL
• Warranty: 18 months

Features and benefits:

• Back body welded with double profile forming a protected sealed area for enhanced ingress protection
• Sides manufactured from a single folded section for structural rigidity
• Reversible door hinges allow flexible installation in confined spaces
• Removable cable gland plate, door, and mounting plate simplify installation and wiring access
• Epoxy-polyester powder coating provides corrosion resistance in industrial environments
• DNV-GL certification confirms suitability for marine and offshore applications

Applications:

• Wall-mounted electrical distribution panels in industrial facilities
• Control and automation enclosures in manufacturing environments
• Outdoor or washdown-area electrical installations requiring IP66 protection
• Marine and offshore control panels requiring DNV-GL certified enclosures
• General-purpose equipment housing in commercial and infrastructure projects

Compliant with IEC 62208, UL, and cUL standards. Part of the Schneider Electric PanelSeT CRN range.
