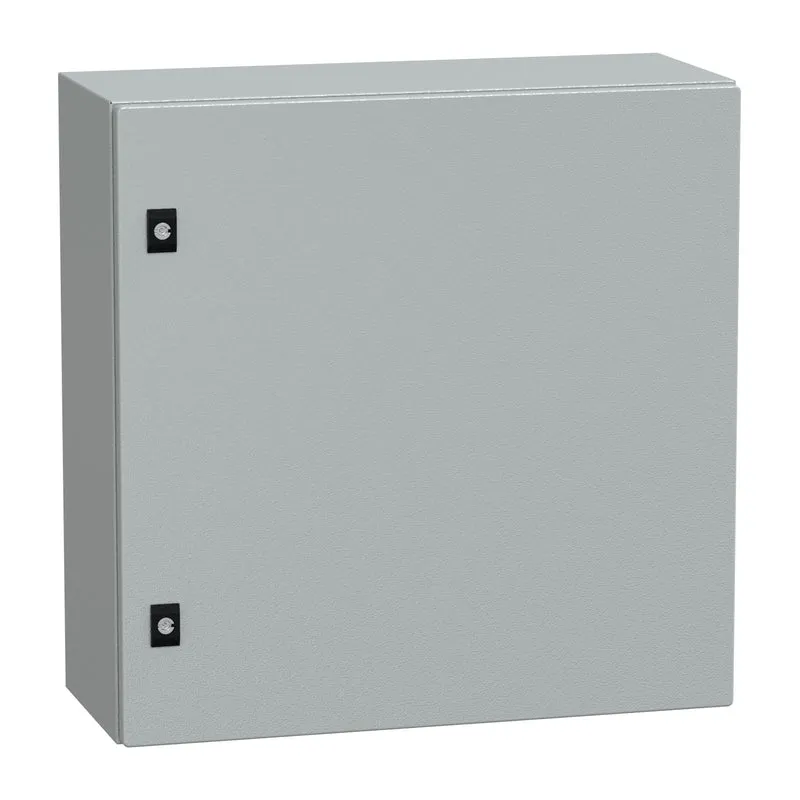

Schneider NSYCRN66250P PanelSet CRN Plain Door With Mounting Plate, H600xW600xD2

The Schneider Electric NSYCRN66250P is a PanelSeT CRN compact enclosure with a plain door and galvanised steel mounting plate, sized H600 x W600 x D250 mm. Designed for multi-purpose wall-mounting applications, it delivers IP66 dust and water protection alongside IK10 impact resistance, making it suitable for demanding industrial and commercial installations.

Technical specifications:

• Commercial reference: NSYCRN66250P
• Manufacturer: Schneider Electric
• EAN: 3606480211980
• Series / range: PanelSeT CRN
• Category: Compact enclosure
• Application: Multi-purpose
• Nominal height: 600 mm
• Nominal width: 600 mm
• Nominal depth: 250 mm
• Installation type: Wall-mounting
• Door type: Plain
• Door opening: Reversible, 120 degrees
• Lock type: 3 mm double-bar lock
• Enclosure material: Steel
• Mounting plate material: Galvanised steel
• Surface finish: Epoxy-polyester powder coating
• Colour: Grey RAL 7035
• IP degree of protection: IP66 (IEC 60529)
• IK degree of protection: IK10 (IEC 62262)
• Product weight: 19.54 kg
• Certifications: UL, cUL, DNV-GL
• Standards: IEC 62208, UL, CUL

Features and benefits:

• Back welded body with double profile forming a protected sealed area for enhanced internal cable management
• Sides formed from a single folded section for improved rigidity and seal integrity
• Reversible door on hinges allows left or right opening to suit installation layout
• Cable gland plate, door, and mounting plate are all independently removable for easier wiring and maintenance
• PVC-free and silicone-free construction with 98% recyclability potential
• 18-month contractual warranty

Applications:

• Wall-mounted electrical distribution and control panels in industrial facilities
• Outdoor or washdown environments requiring IP66 sealed enclosures
• Building automation and machine control cabinet installations
• Marine or transport infrastructure projects requiring DNV-GL certified enclosures

Compliant with IEC 62208 and certified to UL, cUL, and DNV-GL standards. Part of the Schneider Electric PanelSeT CRN range.

Also known as: Schneider NSYCRN66250P, Schneider Electric NSYCRN66250P, Schneider 600x600x250 IP66 enclosure, PanelSeT CRN wall-mount cabinet.
