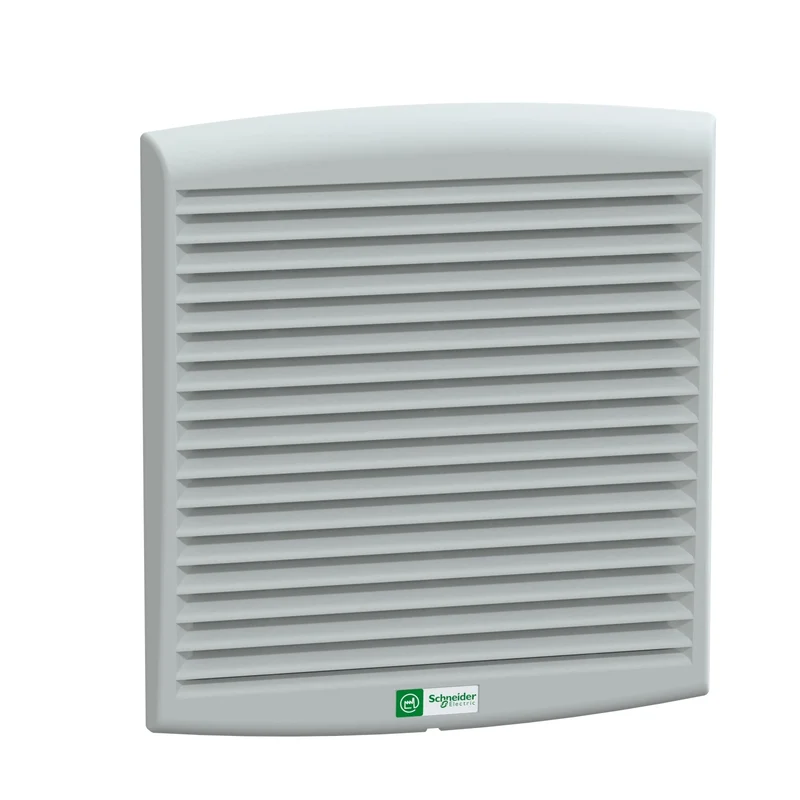

Schneider NSYCVF300M230PF ClimaSys forced vent. IP54

The Schneider Electric NSYCVF300M230PF is a ClimaSys CV forced ventilation unit with IP54 protection, designed to maintain safe operating temperatures inside electrical enclosures. It delivers a free air flow rate of 300 m³/h at 50 Hz and operates on a 230 V / 50-60 Hz supply, making it suitable for a wide range of industrial and commercial panel cooling applications.

Technical specifications:

• Commercial reference: NSYCVF300M230PF
• Manufacturer: Schneider Electric
• EAN: 3606480151286
• Series / range: ClimaSys CV
• Product type: Axial fan / forced ventilation unit
• Filter type: Standard (G2)
• Free air flow rate: 300 m³/h at 50 Hz / 350 m³/h at 60 Hz
• Supply voltage: 230 V, 50/60 Hz (range: 145-253 V)
• Absorbed power: 36 W at 50 Hz / 37 W at 60 Hz
• Rated current: 0.17 A at 50 Hz / 0.16 A at 60 Hz
• Noise level: less than 55-56 dB
• Bearing type: Ball bearing
• External dimensions (WxHxD): 248 x 268 x 116 mm
• Cutout dimensions: 223 x 223 mm
• Weight: 1.3 kg
• IP protection rating: IP54
• Operating temperature: -10 to 70 °C
• Storage temperature: -40 to 70 °C
• Maximum static pressure: 158 Pa at 0 m³/h
• Connection type: Faston connector
• Outlet grille material: Injection-moulded thermoplastic (ASA PC), grey RAL 7035
• Warranty: 18 months

Features and benefits:

• IP54-rated enclosure protection guards against dust and water splash, suitable for demanding industrial environments
• High airflow capacity of 300 m³/h at 50 Hz effectively removes heat from enclosures to prevent component overheating
• Ball bearing motor construction ensures long service life and reliable continuous operation
• Includes outlet grille, G2 filter, cutout template, and power cable for complete ready-to-install assembly
• Wide supply voltage tolerance (145-253 V) accommodates fluctuating grid conditions

Applications:

• Thermal management of industrial control panels and electrical distribution enclosures
• Cooling of automation cabinets in manufacturing and process control environments
• Ventilation of outdoor or semi-outdoor enclosures where IP54 ingress protection is required
• Machine builder and OEM panel cooling solutions requiring compact forced ventilation

Part of the Schneider Electric ClimaSys range of enclosure climate control products.
