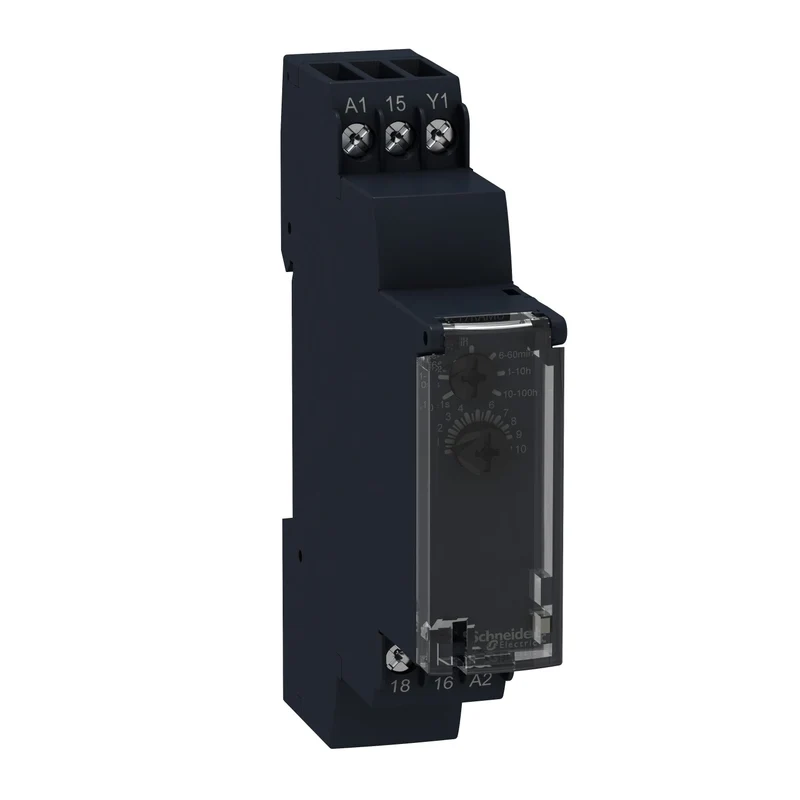

Schneider RE17RCMU Harmony Modular Timing Relay 8A 1CO off-delay 24V-240V

The Schneider Electric RE17RCMU is a Harmony modular off-delay timing relay with an 8 A rated output and a single changeover (1 C/O) contact, accepting a wide supply of 24-240 V AC (50/60 Hz) or 24 V DC. Seven selectable time delay ranges from 0.1 seconds to 100 hours make it well suited to diverse industrial and commercial timing applications.

Technical specifications:

• Commercial reference: RE17RCMU
• Manufacturer: Schneider Electric
• EAN: 3606480552694
• Series / range: Harmony Timer Relays
• Product type: Modular timing relay
• Delay function: Off-delay with control signal (type C)
• Time delay ranges: 0.1-1 s, 1-10 s, 6-60 s, 1-10 min, 6-60 min, 1-10 h, 10-100 h
• Rated output current: 8 A
• Output contact: 1 C/O, cadmium-free
• Supply voltage: 24-240 V AC 50/60 Hz / 24 V DC
• Breaking capacity: 2000 VA (max 250 V AC switching voltage)
• Dimensions (WxHxD): 17.5 x 90 x 72 mm
• Weight: 0.07 kg
• IP protection: IP20 (terminal block), IP40 (housing), IP50 (front panel) per IEC 60529
• Operating temperature: -20 to 60°C
• Mounting: 35 mm DIN rail per IEC 60715
• Connection: Screw terminals, up to 3.3 mm² single-core or 2.5 mm² flexible with cable end
• Certifications: cULus, GL, CSA, CE

Features and benefits:

• Universal 24-240 V AC / 24 V DC supply range eliminates the need for multiple relay variants across different site voltages
• Seven selectable time delay ranges from 0.1 s to 100 h cover both short-cycle and long-duration applications
• LED status indicator provides continuous visual feedback on relay state and active timing function
• Cadmium-free contacts and self-extinguishing housing support environmental compliance requirements
• Compact 17.5 mm width saves valuable panel space on 35 mm DIN rail installations

Applications:

• Motor control panels requiring delayed de-energisation after a stop command
• Industrial automation sequences with timed off-delay control logic
• HVAC and ventilation systems for fan run-on control after shutdown
• Building automation panels with time-delayed relay switching outputs

Compliant with IEC 61812-1, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, 2004/108/EC, and 2006/95/EC. Part of the Schneider Electric Harmony Timer Relays range.

Also known as: Schneider RE17RCMU, Schneider Electric RE17RCMU, Harmony off-delay timer relay, modular timing relay 24V-240V.
