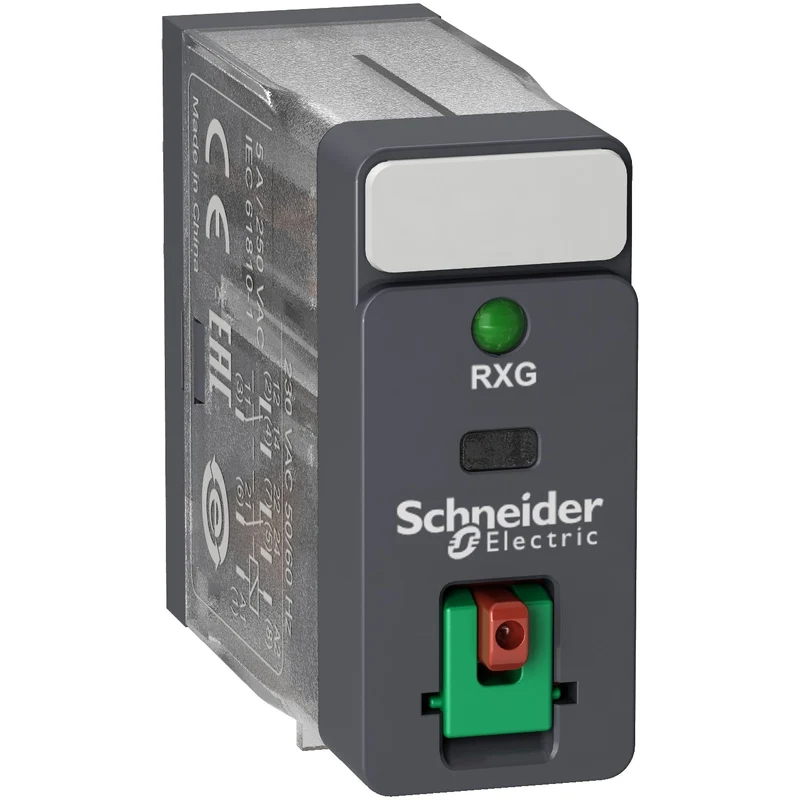

Schneider RXG22P7 Harmony Interface Relay 2CO 230VAC 5A

The Schneider Electric RXG22P7 is a plug-in interface relay from the Harmony Electromechanical Relays range, part of the Zelio RXG series. It features 2 C/O contacts with a 230 V AC coil and a 5 A rated current, with a flag indicator and LED for local status signalling. This compact relay is designed for reliable signal isolation and switching in industrial control panels.

Technical specifications:

• Commercial reference: RXG22P7
• Manufacturer: Schneider Electric
• EAN: 3606480689147
• Series / range: Harmony Electromechanical Relays - Zelio RXG
• Contact type: 2 C/O
• Coil voltage: 230 V AC
• Rated thermal current: 5 A at -40...55°C
• Load current: 5 A at 250 V AC
• Maximum switching voltage: 250 V AC / 30 V DC
• Maximum switching power: 1250 VA
• Rated insulation voltage: 250 V (IEC) / 300 V (CSA/UL)
• Overvoltage category: III
• Pollution degree: 2
• Mechanical durability: 10,000,000 cycles
• Operating cycles: up to 1800/h under load, up to 18,000/h without load
• Make/break time: 20 ms
• Contact material: silver alloy (AgSnO2In2O3)
• IP protection: IP40
• Operating temperature: -40...70°C
• Storage temperature: -40...85°C
• Weight: 0.02 kg
• Certifications: UL, EAC, CE, CSA, DNV-GL
• Standards: IEC 61810-1, UL 508, CSA C22.2 No 14

Features and benefits:

• 2 C/O contacts provide flexible switching and signal isolation in a single plug-in device
• Flag indicator and LED allow quick visual status check without opening the panel
• Wide operating temperature range of -40 to 70°C suits demanding industrial environments
• 10 million mechanical cycles ensure long service life in high-frequency switching applications
• Silver alloy contacts (AgSnO2In2O3) deliver stable, low-resistance switching performance

Applications:

• Signal isolation between PLC outputs and power loads in automation panels
• Machine control cabinets requiring reliable 230 V AC interface switching
• Building automation and HVAC control systems
• Industrial control panels in environments with stringent certification requirements

Compliant with IEC 61810-1, UL 508, and CSA C22.2 No 14. Part of the Schneider Electric Harmony Electromechanical Relays range.

Also known as: Schneider RXG22P7, Schneider Electric RXG22P7, Harmony plug-in relay, Zelio RXG interface relay.
