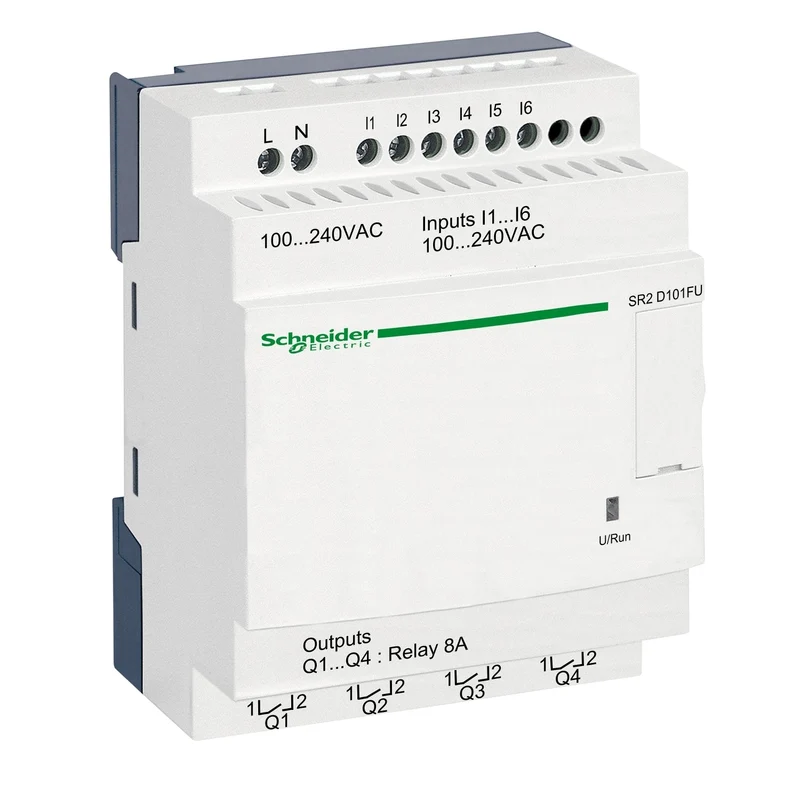

Schneider SR2D101FU Zelio Logic Smart Relay 10 IO 100-240V AC Clock

The Schneider Electric SR2D101FU is a compact programmable relay from the Zelio Logic series, with 10 I/O, a 100-240 V AC wide-range supply, and no integrated clock or display. It provides 6 digital inputs and 4 relay outputs for straightforward automation tasks in small control panels.

Technical specifications:

• Commercial reference: SR2D101FU
• Manufacturer: Schneider Electric
• EAN: 3389110549775
• Series / range: Zelio Logic
• Product type: Compact programmable relay
• Supply voltage: 100-240 V AC (85-264 V limit), 50/60 Hz
• Power consumption: 7 VA (without extension)
• Isolation voltage: 1780 V
• Digital inputs: 6, 100-240 V AC, 0.6 mA
• Analog inputs: 0
• Outputs: 4 relay, NO contact, 8 A thermal current
• Output voltage range: 5-30 V DC / 24-250 V AC
• Ladder programming lines: 240
• Cycle time: 6-90 ms
• Memory retention: 10 years at 25°C
• Impulse withstand voltage [Uimp]: 4 kV (IEC 60947-1)
• Connection: Screw terminals, 0.2-2.5 mm²
• Tightening torque: 0.5 N.m
• Overvoltage category: III (IEC 60664-1)
• IP rating: IP20 (terminal block), IP40 (front panel)
• Operating temperature: -20 to 55°C
• Storage temperature: -40 to 70°C
• Operating altitude: 2000 m
• Product weight: 0.22 kg
• Certifications: UL, CSA, GL, GOST, C-Tick

Features and benefits:

• Wide 100-240 V AC supply accepts most mains voltages without hardware changes
• 4 relay outputs with 10 million mechanical cycles and 500,000 electrical cycles at rated load
• Supports ladder and FBD programming with up to 240 ladder lines and 6-90 ms cycle time
• 10 ms micro-break resistance maintains stable operation during brief supply interruptions
• Program memory verified at every startup for consistent, reliable execution

Applications:

• Small machine automation and sequential control in compact industrial panels
• Building services: lighting control, pump alternation, and HVAC sequencing
• OEM machinery requiring a compact, cost-effective programmable controller
• Conveyor and simple process control with relay output switching

Compliant with IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4, IEC 60068-2-6, and IEC 60068-2-27. Part of the Schneider Electric Zelio Logic range.

Also known as: Schneider SR2D101FU, Schneider Electric SR2D101FU, Zelio Logic compact relay, programmable logic relay 10 I/O.
