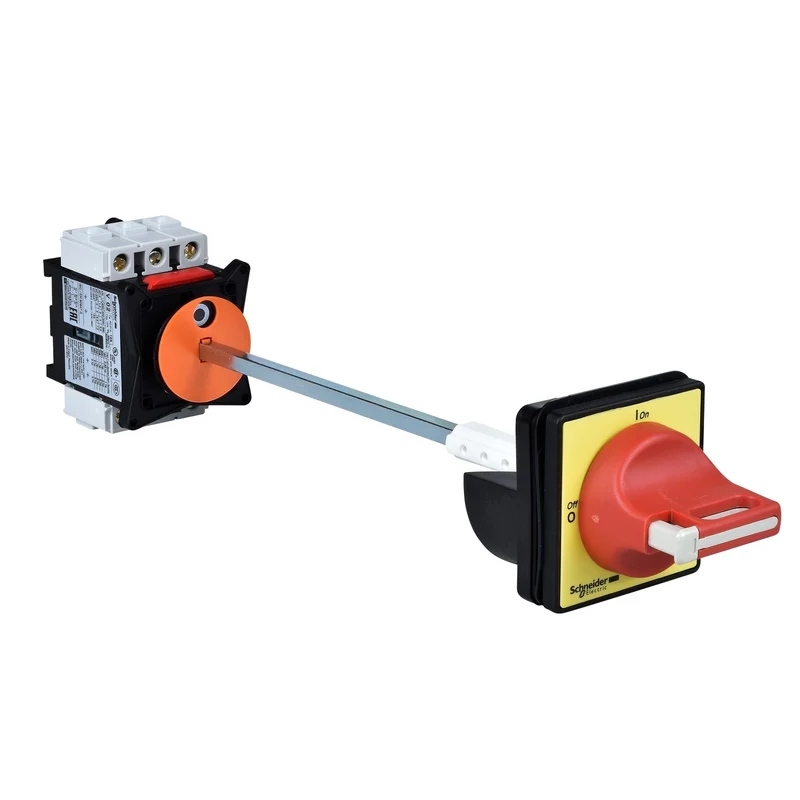

Schneider VCCF0 TeSys Vario Emergency Stop Switch Disconnector 25 A

The Schneider Electric VCCF0 is a TeSys Vario 3-pole emergency stop switch disconnector rated at 25 A (Ith), suitable for mounting on a symmetrical DIN rail or mounting plate. It provides safe local isolation and emergency disconnection of circuits up to 690 V AC, with a conditional short-circuit rating of 10 kA at 400 V when protected by a 25 A gG or aM fuse.

Technical specifications:

• Commercial reference: VCCF0
• Manufacturer: Schneider Electric
• EAN: 3389110449341
• Series / range: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P, 3 NO contacts
• Rated operational current (Ie): 14.5 A at 400 V (AC-23)
• Conventional free air thermal current (Ith): 25 A
• Conventional enclosed thermal current (Ithe): 20 A
• Rated operational voltage (Ue): 690 V AC, 50/60 Hz
• Rated impulse withstand voltage (Uimp): 8 kV
• Breaking capacity: 200 A at 400 V (AC-21A to AC-23A)
• Rated conditional short-circuit current: 10 kA at 400 V (25 A gG or aM fuse)
• Network type: AC / DC
• Control type: Extended rotary handle, red with yellow front plate
• Padlocking: 1 to 3 padlocks, 4...8 mm diameter
• Marking: 0 - 1
• Terminal connection: Screw terminals, up to 10 mm² (single-wire) / 6 mm² (flexible with cable end ferrule)
• Tightening torque: 2.1 N.m
• Mounting: Symmetrical DIN rail or mounting plate
• Dimensions (W x H): 60 x 74 mm, base 60 x 60 mm
• Weight: 0.527 kg
• IP rating: IP20 / IP65 (IEC 60529)
• Operating temperature: -20...50°C
• Standards: IEC 60947-3
• Certifications: UL, CSA, CCC, GL, UKCA

Features and benefits:

• Suitable for isolation - enables safe, verifiable disconnection of power circuits from supply
• Lockable rotary handle accepts up to 3 padlocks (4...8 mm) for LOTO compliance
• High mechanical and electrical durability: 100,000 cycles
• Compatible with both AC and DC network types
• Halogen-free construction with TC protective treatment for demanding industrial environments

Applications:

• Emergency disconnection of motor loads and industrial machinery up to 25 A
• Main isolator in motor control centers and industrial switchgear panels
• Safe isolation point in distribution and control enclosures
• LOTO lockout stations on production and manufacturing lines

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF0, Schneider Electric VCCF0, TeSys Vario emergency switch disconnector, Vario rotary isolator 25 A.
