Schneider VCCF01 TeSys Vario Emergency Stop Switch Disconnector 20 A

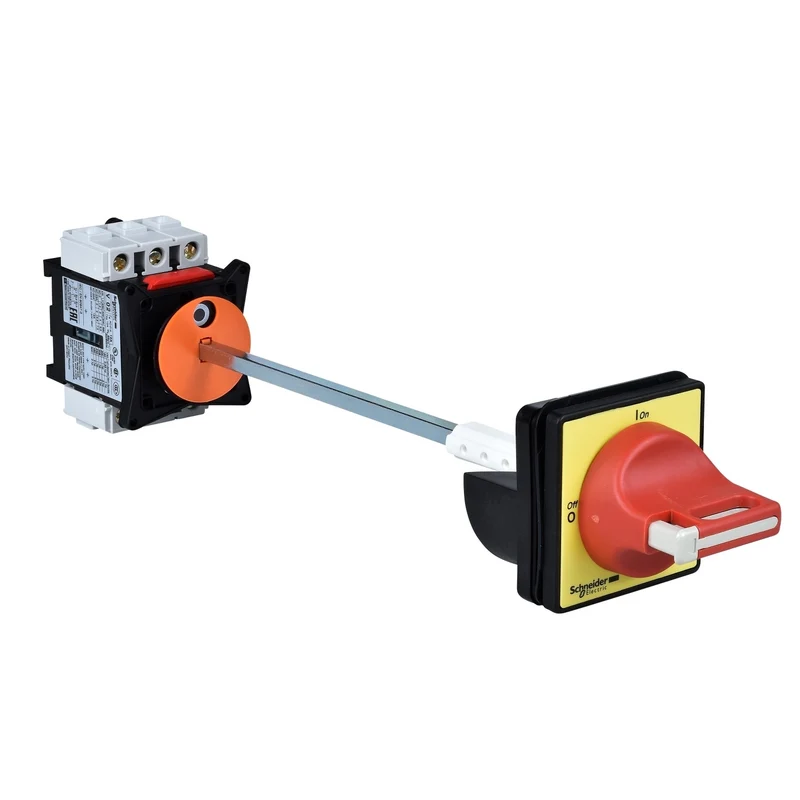

The Schneider Electric VCCF01 is a TeSys Vario 3-pole emergency stop switch disconnector rated at 20 A conventional free air thermal current and 690 V AC operational voltage. It provides safe isolation and emergency shutdown of motor loads, with a door-mounted red rotary handle with yellow front plate and lockable-off capability for up to three padlocks. The unit is compatible with both AC and DC networks and meets IEC 60947-3 requirements for switch disconnectors.

Technical specifications:

• Commercial reference: VCCF01
• Manufacturer: Schneider Electric
• Series: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P, 3 NO contacts
• Rated operational voltage: 690 V AC 50/60 Hz
• Rated operational current: 11 A (AC-23 at 400 V)
• Conventional free air thermal current (Ith): 20 A
• Making and breaking capacity: 200 A at 400 V (AC-21A, AC-22A, AC-23A)
• Rated conditional short circuit current: 10 kA at 400 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Network type: AC and DC
• Padlocking: 1 to 3 padlocks, 4...8 mm
• Mechanical durability: 100,000 cycles
• Terminal connection: Screw terminals - 10 mm² solid / 6 mm² flexible with cable end
• Dimensions: width 60 mm, height 74 mm, base 60 x 60 mm
• Weight: 0.527 kg
• Degree of protection: IP20 / IP65 per IEC 60529
• Operating temperature: -20...50 °C
• Standard: IEC 60947-3
• Certifications: CSA, CCC, GL, UL, UKCA

Features and benefits:

• Verified isolation function for safe disconnection per IEC 60947-3
• Lockable in the OFF position with up to 3 padlocks for lockout/tagout compliance
• Red handle with yellow front plate provides immediate visual status recognition
• 100,000-cycle mechanical durability for extended service life
• Dual IP20 / IP65 protection rating for flexible installation environments

Applications:

• Emergency stop and isolation of three-phase motor loads in industrial machinery
• Main disconnector in motor control panels and automation enclosures
• Safe isolation of pumps, conveyors, and fan drives up to 690 V AC
• Door-mounted emergency switching for industrial electrical enclosures

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF01, Schneider Electric VCCF01, TeSys Vario emergency stop disconnector, rotary handle switch disconnector.
