Schneider VCCF02 TeSys Vario Emergency Stop Switch Disconnector 12 A

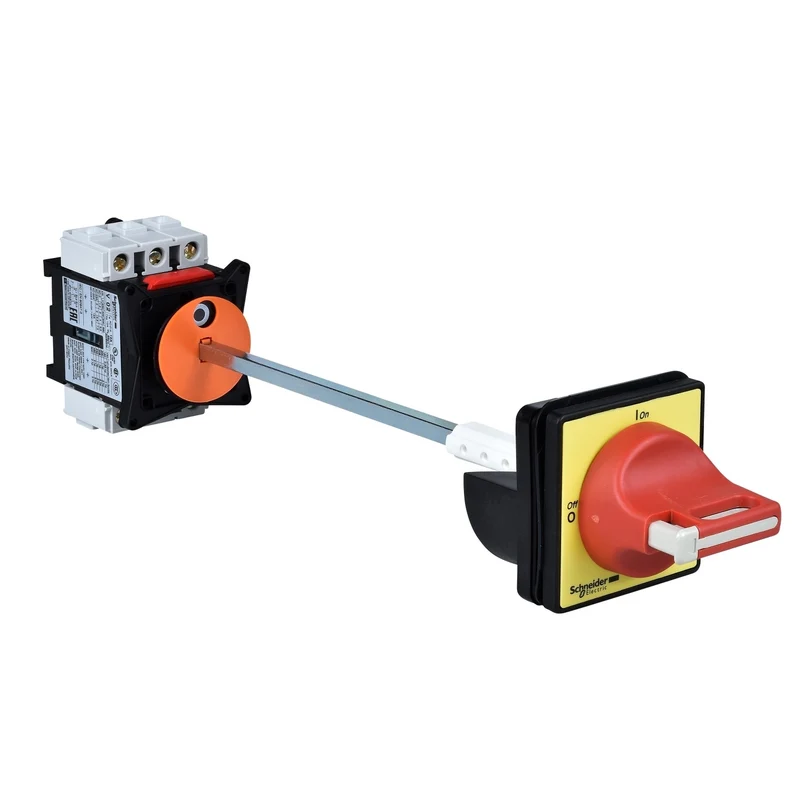

The Schneider Electric VCCF02 is a TeSys Vario emergency stop switch disconnector rated at 12 A conventional free air thermal current and 690 V AC. The 3-pole unit uses an extended red rotary handle mounted on the enclosure door with a yellow front plate for immediate visual status identification, while the switch body mounts on a DIN rail or panel plate.

Technical specifications:

• Commercial reference: VCCF02
• Manufacturer: Schneider Electric
• EAN: 3389110201062
• Series / range: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P
• Contact type: 3 NO
• Rated operational voltage (Ue): 690 V AC 50/60 Hz
• Rated operational current (Ie): 8.1 A (AC-23 at 400 V)
• Conventional free air thermal current (Ith): 12 A
• Making / breaking capacity: 120 A at 400 V
• Rated conditional short circuit current: 10 kA at 400 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Rated short time withstand current (Icw): 300 A at 400 V / 1 s
• Network type: AC / DC
• Padlocking: 1 to 3 padlocks, 4-8 mm
• Terminal connection: Screw terminals - 10 mm² (rigid) / 6 mm² (flexible with cable end)
• Dimensions (W x H): 60 x 74 mm, base 60 x 60 mm
• Weight: 0.527 kg
• IP rating: IP20 / IP65
• Operating temperature: -20 to 50°C
• Standard: IEC 60947-3
• Certifications: CCC, UL, CSA, GL, UKCA

Features and benefits:

• Red rotary handle with yellow front plate provides unambiguous visual identification of emergency stop status
• Lockable in the OFF position with 1 to 3 padlocks (4-8 mm) for lockout/tagout compliance
• Suitable for isolation per IEC 60947-3, confirming full disconnector function
• 100,000 mechanical operating cycles for long-term reliability in demanding environments
• Flexible mounting: DIN rail, panel plate, or door-mounted handle configurations

Applications:

• Emergency stop and isolation of 3-phase motors in industrial machinery
• Main disconnector in motor control centers and switchgear panels
• Lockout/tagout safety points during maintenance of electrical installations
• Door-mounted emergency switching in control cabinets and automation enclosures

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF02, Schneider Electric VCCF02, TeSys Vario emergency stop disconnector, rotary handle switch disconnector.
