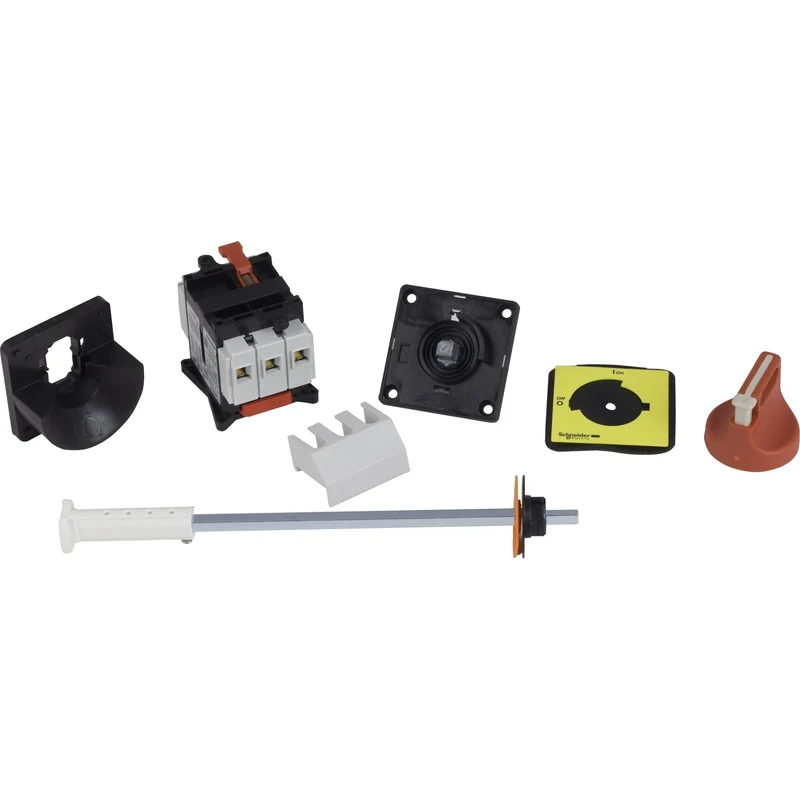

Schneider VCCF1 TeSys Vario Emergency Stop Switch Disconnector 32 A

The Schneider Electric VCCF1 is a TeSys Vario emergency stop switch disconnector rated at 32 A, providing safe isolation and emergency switching of AC and DC circuits up to 690 V. Its 3-pole configuration with red rotary handle and yellow front plate delivers clear visual identification for emergency stop duty, while padlocking capability supports lockout/tagout safety procedures.

Technical specifications:

• Commercial reference: VCCF1
• Manufacturer: Schneider Electric
• EAN: 3389110449334
• Series / range: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P, contact composition 3 NO
• Conventional free air thermal current [Ith]: 32 A
• Conventional enclosed thermal current [Ithe]: 25 A
• Rated operational current [Ie]: 21.8 A (AC-23, 400 V)
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Rated operational power: 7.5 kW at 400 V (AC-3), 11 kW at 400-415 V (AC-23A)
• Breaking capacity: 250 A at 400 V (AC-21A / AC-22A / AC-23A)
• Making capacity: 320 A at 400 V (AC-21A / AC-22A / AC-23A)
• Rated conditional short circuit current: 10 kA at 400 V (with 35 A aM or gG fuse)
• Rated short time withstand current [Icw]: 384 A at 400 V for 1 s
• Rated impulse withstand voltage [Uimp]: 8 kV
• Suitable for isolation: Yes
• Network type: AC and DC
• Control: Extended rotary handle, red with yellow front plate
• Padlocking: 1 to 3 padlocks, 4-8 mm
• Mechanical durability: 100,000 cycles; electrical durability: 100,000 cycles (AC-21), 30,000 cycles (DC)
• Terminal connection: Screw terminals - 10 mm² rigid / 6 mm² flexible with cable end
• Tightening torque: 2.1 N.m
• Width: 60 mm, Height: 74 mm, Base: 60 x 60 mm
• Weight: 0.527 kg
• IP rating: IP20 / IP65 per IEC 60529
• Operating temperature: -20 to 50°C
• Standard: IEC 60947-3
• Certifications: CSA, UL, GL, CCC, UKCA

Features and benefits:

• Red rotary handle with yellow front plate provides clear emergency stop identification at a glance
• Padlockable in the OFF position with up to 3 padlocks (4-8 mm) for lockout/tagout compliance
• Rated for isolation duty, enabling safe de-energisation for maintenance
• Flexible mounting: symmetrical DIN rail or mounting plate, with handle mountable on enclosure door
• Compatible with both AC and DC networks with high durability ratings
• Halogen-free and PVC-free construction for environmentally responsible panel builds

Applications:

• Emergency stop and safe isolation of motors and machine drives in industrial control panels
• Main disconnector duty in motor control centers and switchgear assemblies
• Lockout/tagout isolation points for scheduled maintenance on industrial machinery
• Door-mounted emergency switching in electrical enclosures and control cabinets
• Load isolation in AC and DC power distribution systems

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF1, Schneider Electric VCCF1, TeSys Vario emergency stop disconnector, Vario switch disconnector 32 A.
