Schneider VCCF2 TeSys Vario Emergency Stop Switch Disconnector 40 A

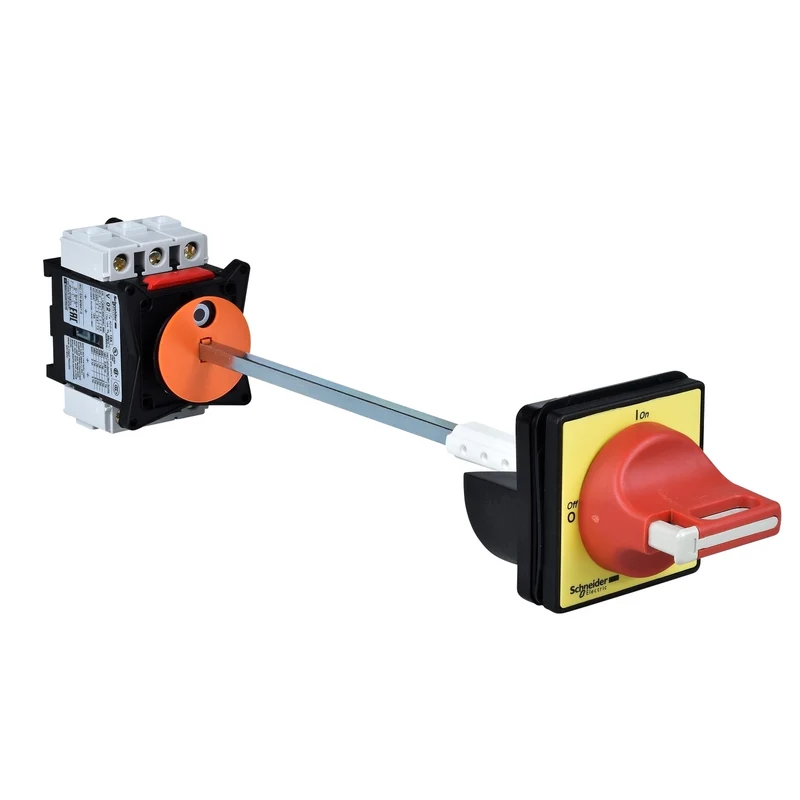

The Schneider Electric VCCF2 is a TeSys Vario 3-pole emergency stop switch disconnector rated at 40 A, designed for safe isolation and emergency switching of electrical loads on AC and DC networks up to 690 V AC. The unit mounts on a symmetrical DIN rail or panel plate and features an extended red rotary handle with a yellow front plate for clear circuit identification.

Technical specifications:

• Commercial reference: VCCF2
• Manufacturer: Schneider Electric
• EAN: 3389110449327
• Series / range: TeSys Vario
• Number of poles: 3P, 3 NO contacts
• Conventional free air thermal current [Ith]: 40 A
• Rated operational current [Ie]: 29 A (AC-23, Ue: 400 V)
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Breaking capacity: 320 A at 400 V (AC-21A to AC-23A)
• Rated conditional short-circuit current: 10 kA at 400 V
• Network type: AC / DC
• Mounting: DIN rail (symmetrical) or panel plate
• Terminal connection: Screw terminals - 10 mm² solid / 6 mm² flexible
• Dimensions (W x D x H): 60 x 60 x 74 mm
• Weight: 0.527 kg
• IP rating: IP20 / IP65 (IEC 60529)
• Operating temperature: -20...50 °C
• Standard: IEC 60947-3
• Certifications: UL, CSA, CCC, GL, UKCA

Features and benefits:

• Confirmed suitable for isolation duty, meeting IEC 60947-3 disconnector requirements
• Padlockable rotary handle accepts 1 to 3 padlocks (4...8 mm) for lockout/tagout safety procedures
• Flexible mounting on DIN rail or panel plate using screws or clamps
• Rated for motor loads up to 15 kW at 400...415 V (AC-23A)
• 100,000 mechanical cycles and 100,000 electrical cycles (AC-21) operational durability

Applications:

• Emergency stop isolation in industrial motor control panels
• Main disconnector duty in motor starter and machine control assemblies
• Lockout/tagout procedures in manufacturing and process plant environments
• Safety isolation in automation control cabinets and distribution boards

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF2, Schneider Electric VCCF2, TeSys Vario switch disconnector, Vario emergency stop disconnector 40A.
