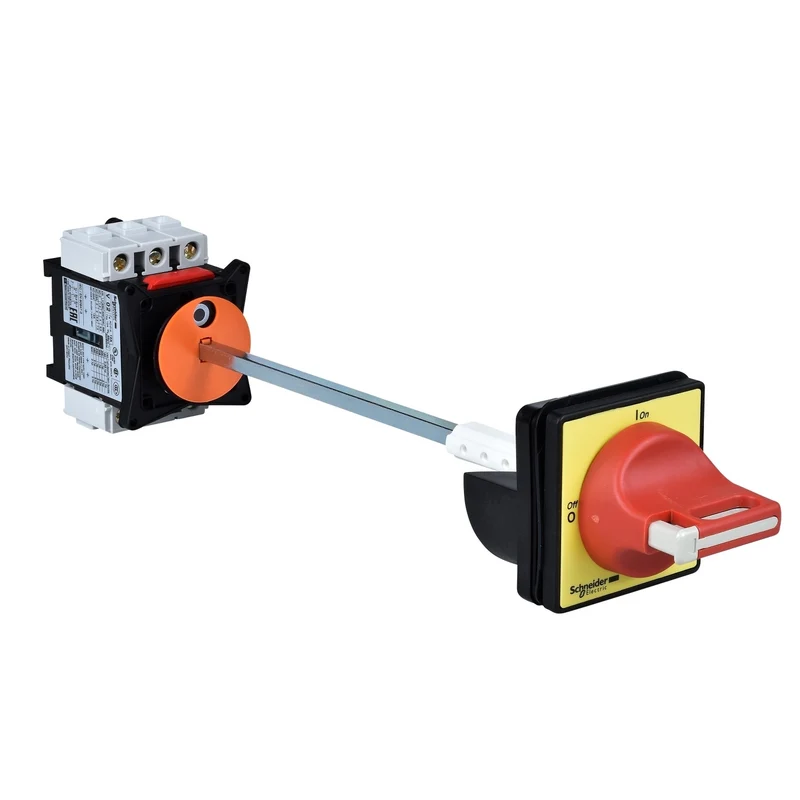

Schneider VCCF3 TeSys Vario Emergency Stop Switch Disconnector 63 A

The Schneider Electric VCCF3 is a 3-pole TeSys Vario emergency stop switch disconnector rated at 63 A and 690 V AC. It features a door-mounted red rotary handle with yellow front plate, lockable in the OFF position with up to three padlocks to support lockout/tagout safety procedures in industrial environments.

Technical specifications:

• Commercial reference: VCCF3
• Manufacturer: Schneider Electric
• EAN: 3389110194005
• Series / range: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P
• Contact composition: 3 NO
• Conventional free air thermal current [Ith]: 63 A
• Conventional enclosed thermal current [Ithe]: 50 A
• Rated operational current [Ie]: 41.5 A (AC-23, 400 V)
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Rated operational power: 18.5 kW at 400 V (AC-3)
• Breaking capacity: 500 A at 400 V
• Rated conditional short circuit current: 10 kA at 400 V (63 A aM or gG fuse)
• Rated impulse withstand voltage [Uimp]: 8 kV
• Suitable for isolation: Yes
• Network type: AC and DC
• Padlocking: 1 to 3 padlocks, 4...8 mm
• Mechanical / electrical durability: 30,000 cycles
• Terminal connection: Screw terminals - 25 mm² solid / 16 mm² flexible with cable ferrule
• Tightening torque: 4 N.m
• Mounting: DIN rail or mounting plate (switch); door (handle)
• Dimensions: 60 mm W x 83 mm H; base 60 x 60 mm
• Weight: 0.44 kg
• IP rating: IP20 / IP65 per IEC 60529
• Operating temperature: -20...50 °C
• Standards: IEC 60947-3
• Certifications: UL, CCC, GL, CSA, UKCA

Features and benefits:

• Red handle with yellow front plate provides clear visual identification for emergency stop applications
• Padlockable in the OFF position with up to 3 padlocks for lockout/tagout compliance
• Approved for isolation duty, enabling safe maintenance of connected equipment
• 30,000 cycle mechanical and electrical durability for long service life
• Compatible with both AC and DC networks for flexible installation

Applications:

• Emergency stop and isolation of motors up to 18.5 kW at 400 V in industrial machinery
• Main disconnector in motor control centers and industrial control panels
• Lockout/tagout isolation points in machinery and process equipment
• Door-mounted rotary switching in electrical enclosures

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.
