Schneider VCCF4 TeSys Vario Emergency Stop Switch Disconnector 80 A

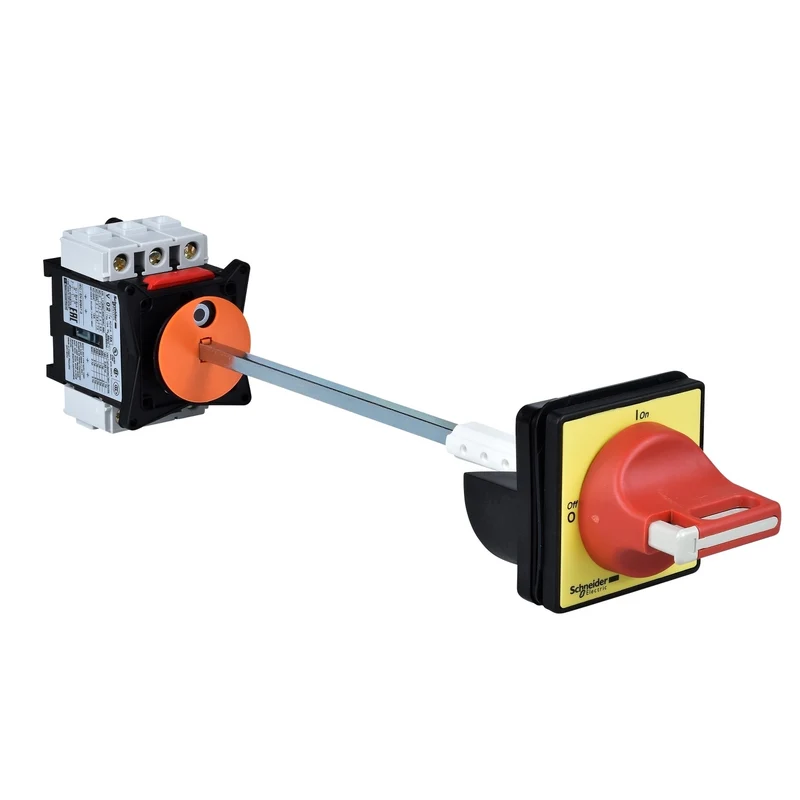

The Schneider Electric VCCF4 is a TeSys Vario emergency stop switch disconnector rated at 80 A, designed for safe isolation and emergency shutdown of AC and DC power circuits. It mounts on a symmetrical DIN rail or panel plate and carries a red padlockable rotary handle, rated up to 690 V AC (50/60 Hz).

Technical specifications:

• Commercial reference: VCCF4
• Manufacturer: Schneider Electric
• EAN: 3389110194029
• Series / range: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P; contact composition: 3 NO
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Conventional free air thermal current [Ith]: 80 A
• Conventional enclosed thermal current [Ithe]: 63 A
• Rated operational current [Ie]: 57 A (AC-23, 400 V)
• Breaking capacity: 640 A at 400 V (AC-21A / AC-22A / AC-23A)
• Rated conditional short circuit current: 10 kA at 400 V (80 A aM or gG fuse)
• Rated impulse withstand voltage [Uimp]: 8 kV
• Network type: AC and DC; suitable for isolation: Yes
• Rotary handle: Red; front plate: Yellow; padlockable 1 to 3 padlocks (4-8 mm)
• Mechanical and electrical durability: 30,000 cycles
• Terminal connection: Screw terminal blocks, 25 mm² (rigid) / 16 mm² (flexible with cable end)
• Dimensions: Width 60 mm, height 83 mm; weight 0.68 kg
• Degree of protection: IP20 / IP65 (IEC 60529)
• Operating temperature: -20 to 50°C
• Standard: IEC 60947-3; certifications: UL, GL, CSA, CCC, UKCA

Features and benefits:

• Approved for isolation duty, enabling safe emergency disconnection of motor and power circuits
• Red rotary handle with yellow front plate for immediate visual identification of switch position
• Padlockable with up to 3 padlocks (4-8 mm) to support lockout/tagout safety procedures during maintenance
• Flexible mounting on symmetrical DIN rail or panel plate for versatile control enclosure installation
• 30,000-cycle mechanical and electrical durability for reliable long-term operation in demanding environments

Applications:

• Emergency stop and isolation of AC and DC motor control circuits in industrial installations
• Main disconnector in motor starters and industrial control panels
• Machinery and equipment requiring certified safety isolation per IEC 60947-3
• Power distribution systems where lockout/tagout procedures are required during maintenance

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF4, Schneider Electric VCCF4, TeSys Vario emergency disconnector, rotary isolator switch 80 A.
