Schneider VCCF5 TeSys Vario Emergency Stop Switch Disconnector 125 A

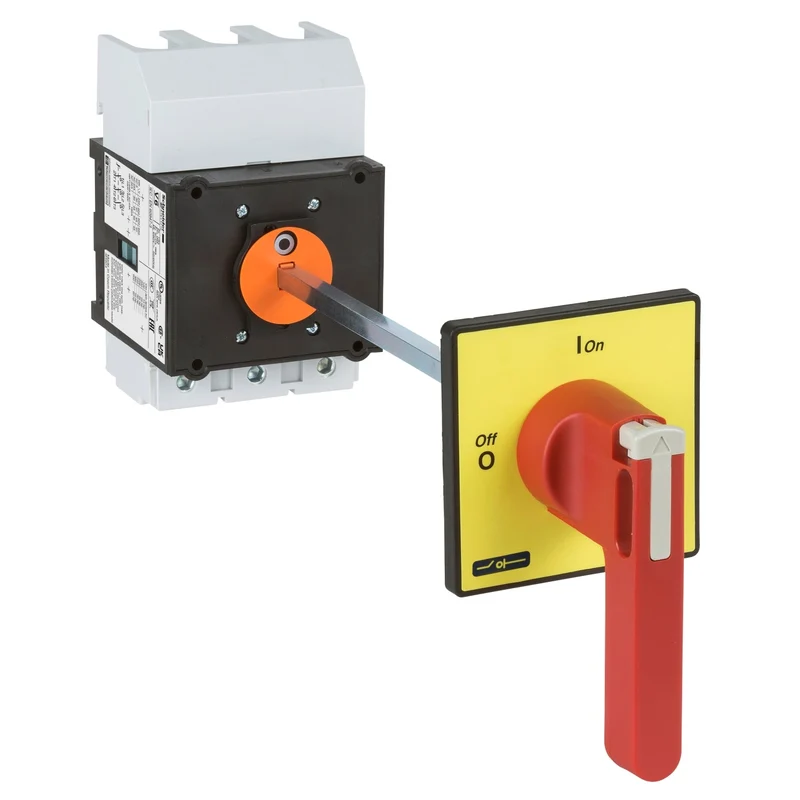

The Schneider Electric VCCF5 is a TeSys Vario 3-pole emergency stop disconnector rated at 125 A and 690 V AC, designed for safe isolation and emergency switching of industrial loads. It features a red rotary handle with a yellow front plate and mounts on a door, DIN rail, or panel.

Technical specifications:

• Commercial reference: VCCF5
• Manufacturer: Schneider Electric
• EAN: 3389110804652
• Series / range: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P
• Contact composition: 3 NO
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Conventional free air thermal current [Ith]: 125 A
• Conventional enclosed thermal current [Ithe]: 100 A
• Rated operational current [Ie]: 68.5 A (AC-23, 400 V)
• Breaking capacity: 1000 A at 400 V (AC-21A / AC-22A / AC-23A)
• Rated conditional short-circuit current: 10 kA at 400 V with 125 A fuse (aM or gG)
• Rated impulse withstand voltage [Uimp]: 8 kV
• Network type: AC / DC
• Control: Rotary handle, extended style, red with yellow front plate
• Padlocking: 1 to 3 padlocks, 4 to 8 mm
• Marking: 0 - 1
• Mechanical / electrical durability: 30,000 cycles
• Terminal connection: Screw terminals, 95 mm² solid / 70 mm² flexible with ferrule
• Tightening torque: 22.6 N.m
• Width: 90 mm; Height: 125 mm; Base: 90 x 90 mm
• Weight: 1.32 kg
• IP rating: IP20 / IP65 (IEC 60529)
• Operating temperature: -20 to 50 °C
• Standard: IEC 60947-3
• Certifications: CCC, UL, CSA, GL, UKCA

Features and benefits:

• Isolation-rated for safe de-energisation and lockout of downstream equipment
• Red/yellow rotary handle provides clear visual emergency stop identification
• Padlockable handle supports lockout/tagout (LOTO) procedures with up to 3 padlocks
• Flexible mounting: door-mounted handle, DIN rail or panel-mounted switch body
• High durability rated for 30,000 mechanical and electrical operating cycles

Applications:

• Emergency stop and safe isolation of motors and industrial machinery
• Main disconnector duty in motor control centers and industrial control panels
• Machine safety circuits requiring lockout/tagout capability

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF5, Schneider Electric VCCF5, TeSys Vario emergency disconnector, rotary switch disconnector 125 A.
