Schneider VCCF6 TeSys Vario Emergency Stop Switch Disconnector 175 A

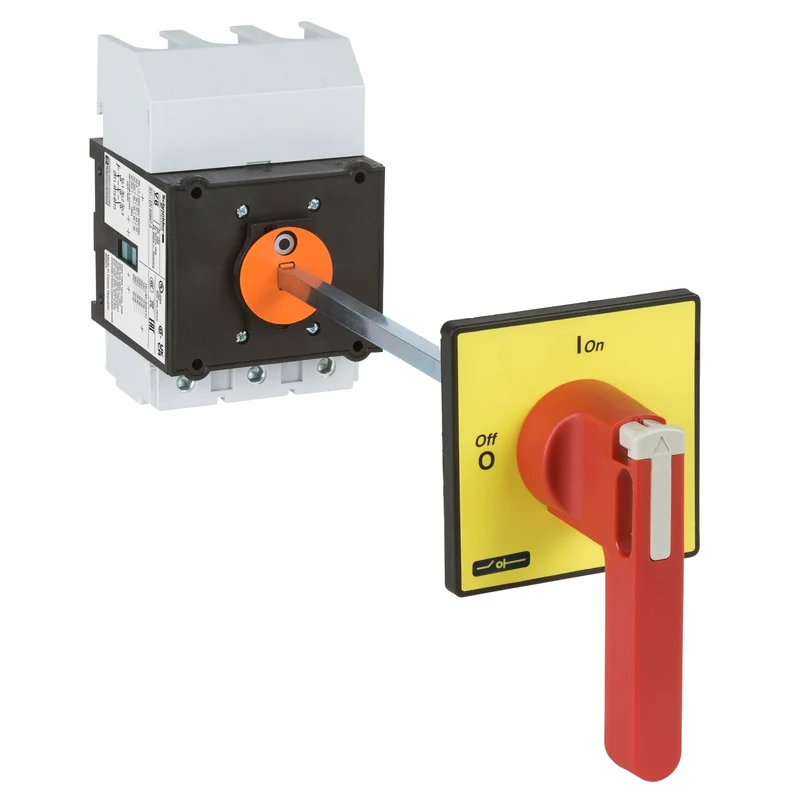

The Schneider Electric VCCF6 is a TeSys Vario emergency stop switch disconnector rated 175 A, designed for door-mounted rotary handle control with the switch body mounted on a symmetrical DIN rail or panel. The 3-pole unit operates on AC and DC networks up to 690 V, delivering 45 kW at 400 V (AC-23A) for industrial motor isolation and emergency switching applications.

Technical specifications:

• Commercial reference: VCCF6
• Manufacturer: Schneider Electric
• EAN: 3389110804669
• Series / range: TeSys Vario
• Product type: Emergency stop switch disconnector
• Number of poles: 3P, 3 NO
• Conventional free-air thermal current [Ith]: 175 A
• Conventional enclosed thermal current [Ithe]: 140 A
• Rated operational current [Ie]: 83 A (AC-23, 400 V)
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Rated operational power: 45 kW at 400 V (AC-23A); 55 kW at 500 V (AC-23A)
• Breaking capacity: 1400 A at 400 V (AC-21A/22A/23A)
• Rated conditional short circuit current: 10 kA at 400 V (fuse 200 A aM or gG)
• Rated short time withstand current [Icw]: 2100 A at 400 V (1 s)
• Rated impulse withstand voltage [Uimp]: 8 kV
• Network type: AC / DC
• Control: Extended rotary handle, red with yellow front plate, padlockable 1-3 padlocks (4-8 mm)
• Suitable for isolation: Yes
• Mechanical / electrical durability: 30,000 cycles
• Terminal connection: Screw terminals - 95 mm² solid / 70 mm² flexible with cable end
• Tightening torque: 22.6 N.m
• Dimensions (W x H, base): 90 mm x 125 mm, base 90 x 90 mm
• Weight: 1.32 kg
• IP protection: IP20 / IP65 per IEC 60529
• Operating temperature: -20...50 °C
• Standard: IEC 60947-3
• Certifications: CSA, CCC, GL, UL, UKCA

Features and benefits:

• Red rotary handle with yellow front plate provides immediate emergency stop recognition at the panel door
• Padlockable off position with up to 3 padlocks supports lockout/tagout safety procedures
• Flexible mounting options: handle on door, switch body on DIN rail or panel via screws or clamps
• AC and DC network compatibility broadens application across diverse industrial installations
• 30,000-cycle mechanical and electrical durability ensures long, reliable service life

Applications:

• Emergency isolation switching in industrial motor control panels
• Main disconnector function in automation and process control enclosures
• Lockout/tagout maintenance switching for high-power industrial machinery
• Door-mounted emergency stop for control cabinets rated up to 175 A

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.

Also known as: Schneider VCCF6, Schneider Electric VCCF6, TeSys Vario emergency disconnector, rotary handle switch disconnector 175 A.
