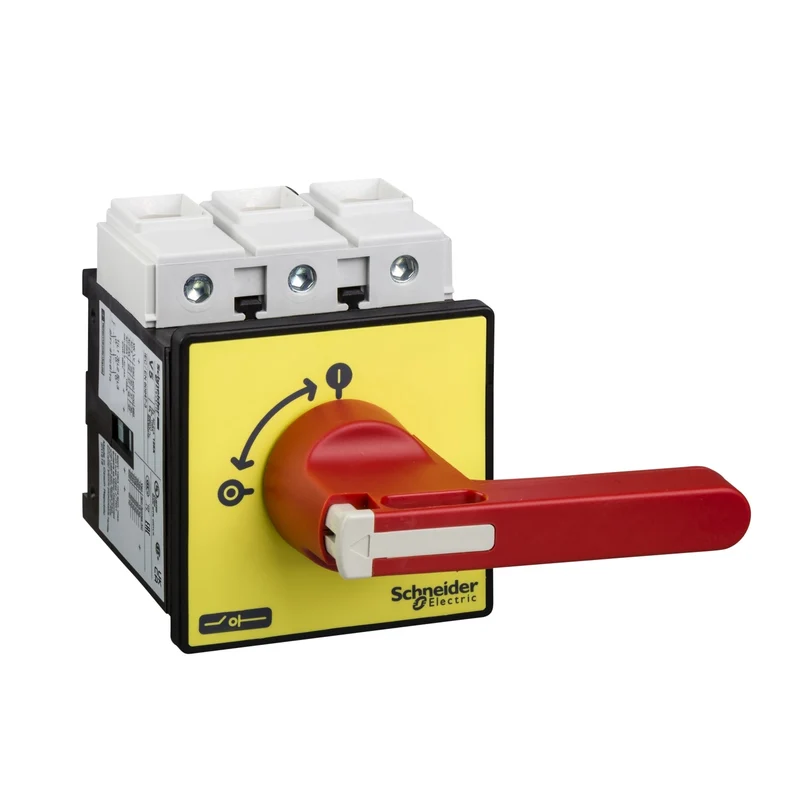

Schneider VCF6 TeSys Vario Emergency Stop Switch Disconnector 175 A

The Schneider Electric VCF6 is a TeSys Vario emergency stop switch disconnector rated at 175 A conventional free air thermal current, designed for door mounting on industrial control panels. This 3-pole rotary handle device provides safe isolation up to 690 V AC, featuring a red handle and yellow front plate for clear emergency stop identification.

Technical specifications:

• Commercial reference: VCF6
• Manufacturer: Schneider Electric
• EAN: 3389110804645
• Series / range: TeSys Vario
• Number of poles: 3P
• Contact composition: 3 NO
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Conventional free air thermal current [Ith]: 175 A
• Rated operational current [Ie]: 83 A (AC-23, 400 V)
• Making capacity: 1750 A at 400 V
• Breaking capacity: 1400 A at 400 V
• Rated conditional short circuit current: 10 kA at 400 V (with 200 A aM/gG fuse)
• Rated impulse withstand voltage [Uimp]: 8 kV
• Network type: AC / DC
• Terminal connection: Screw terminal blocks, up to 95 mm² (solid) / 70 mm² (flexible with cable end)
• Dimensions: 90 mm (W) x 125 mm (H), base 90 x 90 mm
• Weight: 1.2 kg
• IP rating: IP20 / IP65
• Operating temperature: -20 to 50°C
• Standard: IEC 60947-3
• Certifications: GL, UL, CSA, CCC, UKCA
• Mounting: Door mounting with 4 screws

Features and benefits:

• Rated for isolation duty - safe disconnection from the mains supply
• Red handle and yellow front plate for instant emergency stop identification
• Padlockable in the OFF position with 1 to 3 padlocks (4-8 mm)
• 30,000 mechanical and electrical cycle durability
• Direct rotary handle with door-mount installation

Applications:

• Emergency stop isolation for industrial motors and machinery
• Motor control centers and industrial switchgear panels
• Door-mounted main disconnector in control enclosures
• Lockout and tagout safety applications

Compliant with IEC 60947-3. Part of the Schneider Electric TeSys Vario range.
