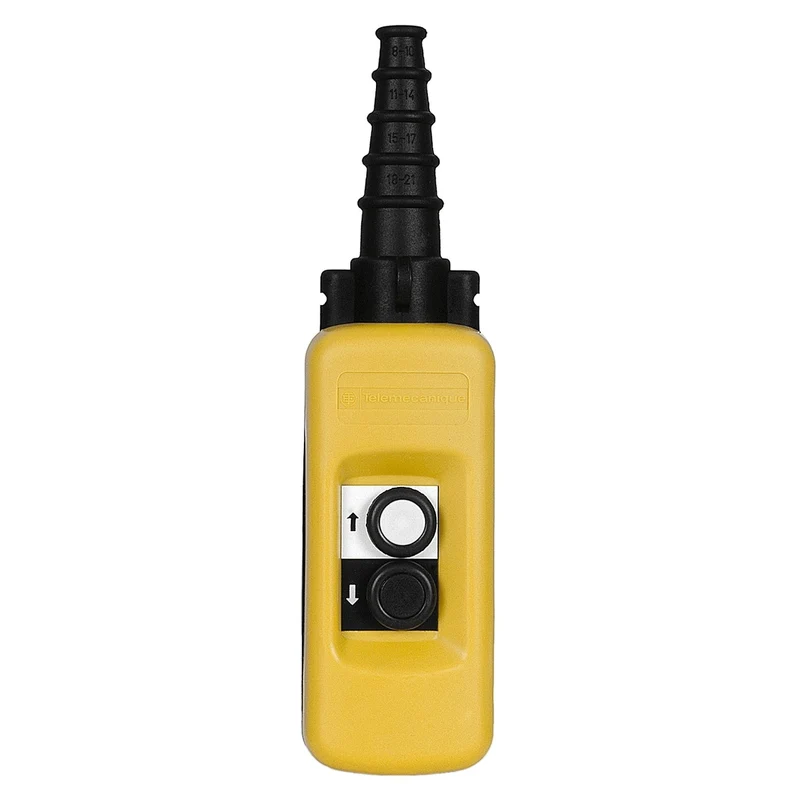

Schneider XACA271 Pendant control station

The Schneider Electric XACA271 is a double-insulated pendant control station from the Harmony XAC series, configured for single-speed crane and hoist motor control. It houses two mechanically interlocked pushbuttons - raise and lower - in a yellow IP65-rated polypropylene enclosure rated for 1,000,000 operating cycles.

Technical specifications:

• Commercial reference: XACA271
• Manufacturer: Schneider Electric
• EAN: 3389110645095
• Series / range: Harmony XAC
• Product type: Pendant control station
• Insulation: Double insulated
• Housing material: Polypropylene
• Colour: Yellow
• Pushbutton configuration: 2 pushbuttons (1 NO raise slow, 1 NO lower slow)
• Mechanical interlock: Yes
• AC-15 contact rating: Ue = 240 V, Ie = 3 A / Ue = 600 V, Ie = 1.2 A
• DC-13 contact rating: Ue = 250 V, Ie = 0.27 A / Ue = 600 V, Ie = 0.1 A
• Rated insulation voltage: 600 V (pollution degree 3)
• Rated impulse withstand voltage: 6 kV
• Thermal current (Ithe): 10 A
• IP protection rating: IP65 (IEC 60529)
• IK impact rating: IK08 (IEC 62262)
• Operating temperature: -25...70 °C
• Storage temperature: -40...70 °C
• Mechanical endurance: 1,000,000 cycles
• Cable entry: Rubber cable gland, stepped entry 8...26 mm
• Connection: Screw terminals, 1 x 0.5...1 x 2.5 mm² (without ferrule) / 1 x 0.5...2 x 1.5 mm² (with ferrule)
• Short circuit protection: 10 A fuse, type gG
• Weight: 0.475 kg
• Standards: IEC 60947-5-1, IEC 60204-32, UL 508, CSA C22.2 No 14
• Certifications: CCC, GOST

Features and benefits:

• Double-insulated polypropylene housing delivers electrical safety and mechanical durability
• Built-in mechanical interlock between raise and lower buttons prevents simultaneous activation
• IP65 and IK08 ratings provide reliable protection against dust ingress and mechanical impacts
• Wide operating temperature range (-25...70 °C) suits harsh industrial and outdoor environments
• Slow-break contact operation and 1,000,000-cycle endurance ensure extended service life

Applications:

• Single-speed overhead crane and hoist motor control
• Industrial material handling and lifting equipment
• Warehouse and logistics crane operator stations
• Factory automation lifting systems requiring pendant control

Compliant with IEC 60947-5-1, IEC 60204-32, UL 508, and CSA C22.2 No 14. Part of the Schneider Electric Harmony XAC range.
