Schneider XACA471 Pendant control station

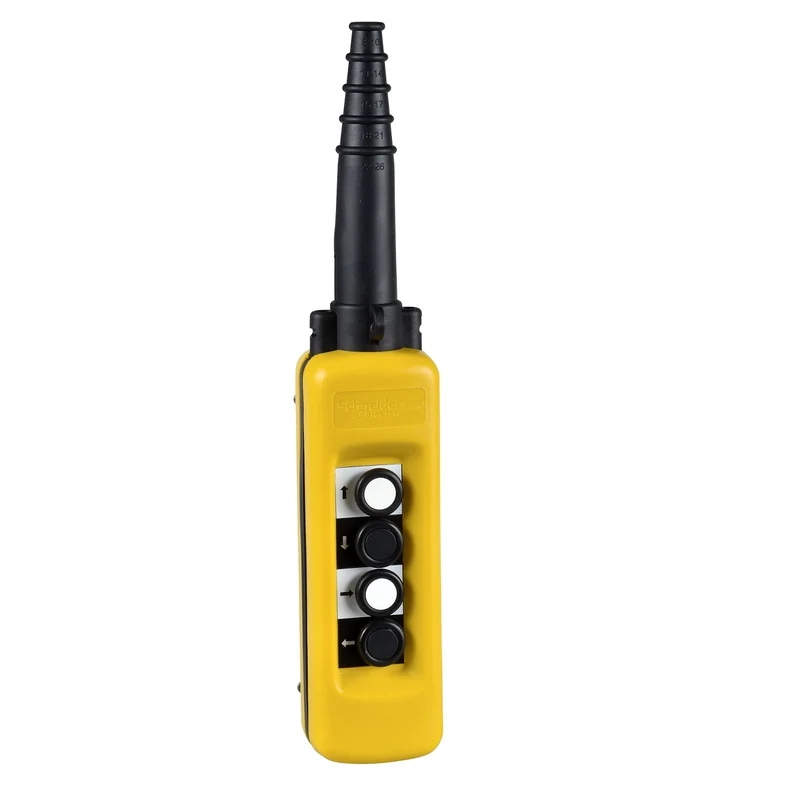

The Schneider Electric XACA471 is a 4-button pendant control station from the Harmony XAC range, designed for directional control of single-speed crane motors. Featuring up, down, left, and right slow-action pushbuttons with mechanical interlocking, it is housed in a double-insulated polypropylene enclosure rated IP65 and IK08 for demanding industrial environments.

Technical specifications:

• Commercial reference: XACA471
• Manufacturer: Schneider Electric
• EAN: 3389110645101
• Series / range: Harmony XAC
• Product type: Pendant control station
• Number of buttons: 4 (up, down, left, right - slow action, 1 NO each)
• Terminal marking: (13-14) NO, (11-12) NC
• Rated insulation voltage (Ui): 600 V (pollution degree 3)
• Rated impulse withstand voltage (Uimp): 6 kV per IEC 60947-1
• Rated thermal current: 10 A
• AC-15 contact rating: A600 - Ue 240 V / Ie 3 A; Ue 600 V / Ie 1.2 A
• DC-13 contact rating: Q600 - Ue 250 V / Ie 0.27 A; Ue 600 V / Ie 0.1 A
• Operating force: 10 N
• Mechanical durability: 1,000,000 cycles
• IP rating: IP65 per IEC 60529
• Impact resistance: IK08 per IEC 62262
• Overvoltage category: Class II per IEC 61140
• Operating temperature: -25 to 70 °C
• Storage temperature: -40 to 70 °C
• Vibration resistance: 15 gn (10...500 Hz) per IEC 60068-2-6
• Shock resistance: 100 gn per IEC 60068-2-27
• Enclosure material: Polypropylene, double insulated, yellow
• Cable entry: Rubber gland with stepped entry, 8...26 mm
• Connection: Screw terminal blocks, 1 x 0.5...1 x 2.5 mm² (without ferrule); 1 x 0.5...2 x 1.5 mm² (with ferrule)
• Short-circuit protection: 10 A gG fuse
• Protection treatment: TH
• Product weight: 0.625 kg
• Certifications: CCC, GOST
• Standards: IEC 60947-5-1, IEC 60204-32, UL 508, CSA C22.2 No 14

Features and benefits:

• Mechanical interlocking between paired directions prevents simultaneous button activation for safe crane operation
• Double-insulated polypropylene enclosure provides enhanced operator safety
• IP65 and IK08 ratings ensure reliable performance in dusty, wet, and mechanically demanding environments
• 1,000,000-cycle mechanical durability suits high-cycle industrial applications
• Stepped rubber cable gland (8...26 mm) accommodates a wide range of cable diameters

Applications:

• Directional control of single-speed overhead crane and hoist motors
• Crane travel control (up/down/left/right) in warehouses and manufacturing facilities
• Material handling machinery requiring a pendant operator station
• Industrial automation and machine control in harsh or outdoor-adjacent environments

Compliant with IEC 60947-5-1, IEC 60204-32, UL 508, and CSA C22.2 No 14. Part of the Schneider Electric Harmony XAC range.

Also known as: Schneider XACA471, Schneider Electric XACA471, crane pendant control station, hoisting control pendant.
