Schneider XALD03 Empty control station

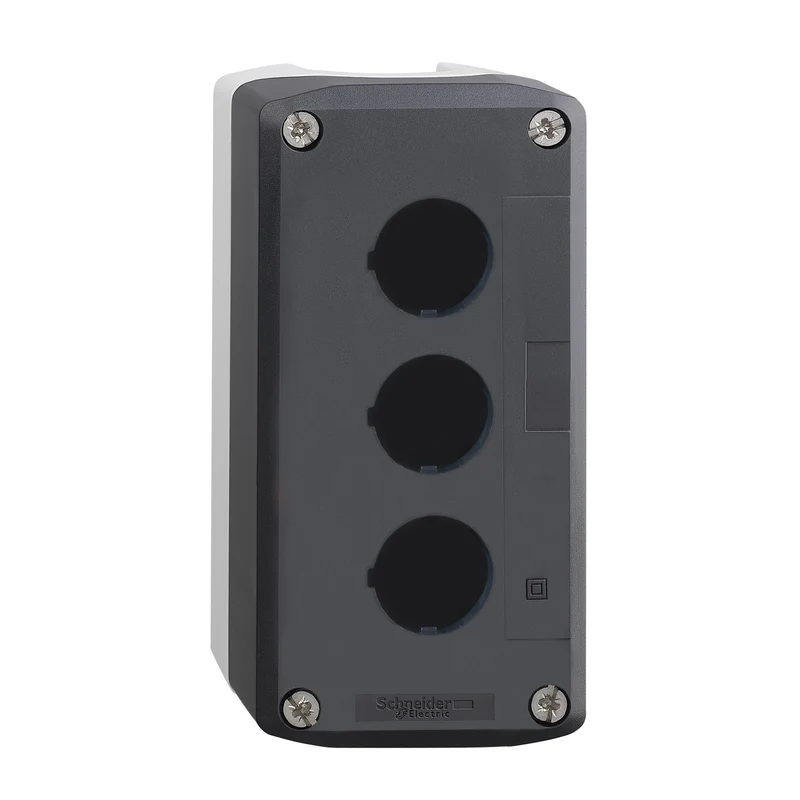

The Schneider Electric XALD03 is an empty control station from the Harmony XALD series, designed to house XB5 22 mm control and signalling elements. It features a light grey base (RAL 7035) and dark grey cover (RAL 7016) with 3 cutouts, offering IP66/67/69/69K protection for demanding environments.

Technical specifications:

• Commercial reference: XALD03
• Manufacturer: Schneider Electric
• EAN: 3389110114812
• Series / range: Harmony XALD
• Product type: Empty control station
• Number of cutouts: 3
• Base colour: Light grey (RAL 7035)
• Cover colour: Dark grey (RAL 7016)
• Material: Polycarbonate
• Cable entry: 2 defined openings for cable entry, clamp capacity 14 mm; 2 defined openings for Pg 13 cable gland and ISO M20, clamp capacity 12 mm
• IP protection: IP66, IP67, IP69, IP69K per IEC 60529
• IK protection: IK03 per IEC 62262
• NEMA protection: NEMA 4X, NEMA 13
• Overvoltage category: Class II per IEC 60536
• Operating temperature: -40...70 °C
• Storage temperature: -40...70 °C
• Mounting: Rear mounting, front installation
• Layout: 1 horizontal row, 3 vertical rows
• Weight: 0.238 kg
• Pressure wash resistance: 7,000,000 Pa at 55 °C, distance 0.1 m
• Standards: IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, CSA C22.2 No 14, UL 508, JIS C8201-1, JIS C8201-5-1
• Warranty: 18 months

Features and benefits:

• High ingress protection (IP66/67/69/69K) suitable for washdown and outdoor environments
• Polycarbonate construction provides impact and chemical resistance
• Compatible with XB5 22 mm pushbuttons, selector switches, and pilot lights
• Flexible cable entry options supporting Pg 13 and ISO M20 cable glands
• User-assembled design allows custom configuration of control elements on site
• RoHS compliant, mercury-free, and supplied in recyclable packaging

Applications:

• Industrial machine control panels requiring 3-position operator interfaces
• Washdown and food processing environments where high IP-rated enclosures are mandatory
• Outdoor control stations exposed to rain, dust, or high-pressure cleaning
• Factory automation stations for start/stop and signalling functions

Compliant with IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 508, and CSA C22.2 No 14. Part of the Schneider Electric Harmony XALD range.

Also known as: Schneider XALD03, Schneider Electric XALD03, Harmony empty control station 3-hole, XB5 control station enclosure.
