Schneider XALD04 Empty control station

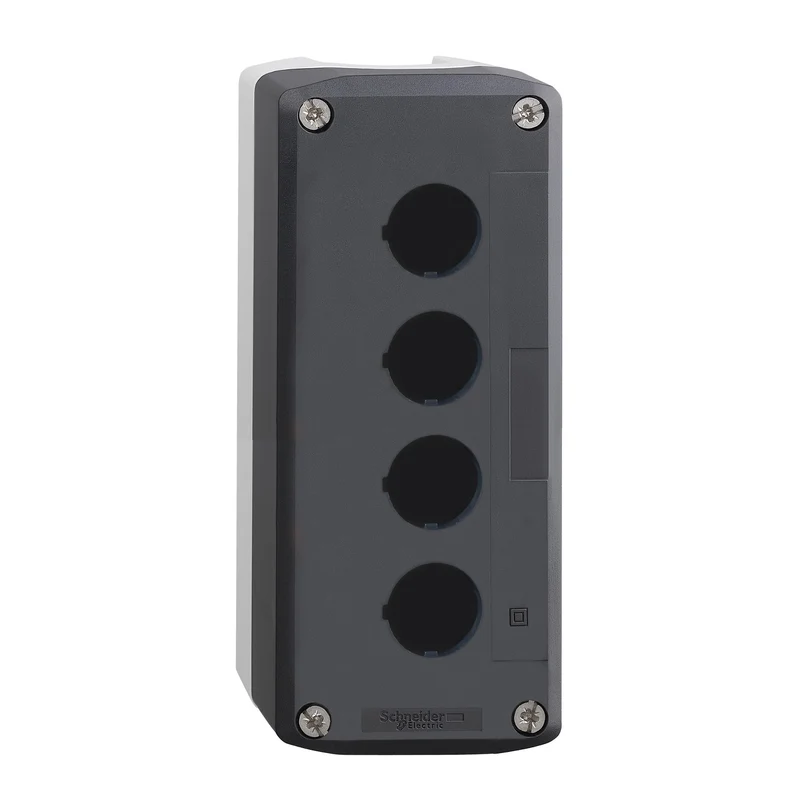

The Schneider Electric XALD04 is an empty control station enclosure from the Harmony XALD series, designed to house XB5 22 mm control and signalling elements. It features a 4-cutout layout with a dark grey cover (RAL 7016) and a light grey base (RAL 7035), offering IP66/IP67/IP69/IP69K protection for demanding industrial environments.

Technical specifications:

• Commercial reference: XALD04
• Manufacturer: Schneider Electric
• EAN: 3389110114836
• Series / range: Harmony XALD
• Product type: Empty control station
• Number of cutouts: 4
• Intended elements: XB5 22 mm control and signalling devices
• Base colour: Light grey (RAL 7035)
• Cover colour: Dark grey (RAL 7016)
• Material: Polycarbonate
• Cable entry: 2 defined openings for cable entry, clamp capacity 14 mm; 2 defined openings for Pg 13 cable gland and ISO M20, clamp capacity 12 mm
• IP protection: IP66, IP67, IP69, IP69K per IEC 60529
• IK impact protection: IK03 per IEC 62262
• NEMA protection: NEMA 4X, NEMA 13
• Overvoltage category: Class II per IEC 60536
• Operating temperature: -40...70 °C
• Storage temperature: -40...70 °C
• Mounting: Front mounting, rear mounting
• Assembly: User-assembled on site
• Horizontal rows: 1
• Vertical rows: 4
• Weight: 0.278 kg
• Pressure wash resistance: 7,000,000 Pa at 55 °C, distance 0.1 m
• Standards: IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, IEC 60947-1, UL 508, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1
• Warranty: 18 months

Features and benefits:

• High ingress protection ratings IP66, IP67, IP69, and IP69K make it suitable for wet, dusty, and high-pressure wash-down environments
• Polycarbonate construction provides durability and resistance to impact (IK03) and chemical exposure
• Accepts standard XB5 22 mm pushbuttons, selector switches, and pilot lights for flexible configuration
• Front and rear mounting options allow integration into a wide range of panel and field installation setups
• User-assembled design enables custom configuration of control elements on site
• Plastic-free and recycled-cardboard packaging with full RoHS and REACh compliance supports sustainable procurement

Applications:

• Industrial machine control panels requiring field-mounted operator interfaces
• Food and beverage processing lines where high-pressure wash-down cleaning is routine
• Outdoor or wet-area installations demanding IP67/IP69K-rated enclosures
• Material handling and conveyor systems needing start/stop or emergency stop stations
• Water treatment and pumping stations exposed to moisture and dust

Compliant with IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, IEC 60947-1, UL 508, and CSA C22.2 No 14. Part of the Schneider Electric Harmony XALD range.

Also known as: Schneider XALD04, Schneider Electric XALD04, Harmony empty control station, 4-hole pushbutton enclosure.
