Schneider XALD05 Electric XALD05 Harmony XALD Empty Enclosure 5 Cut-Outs IP66

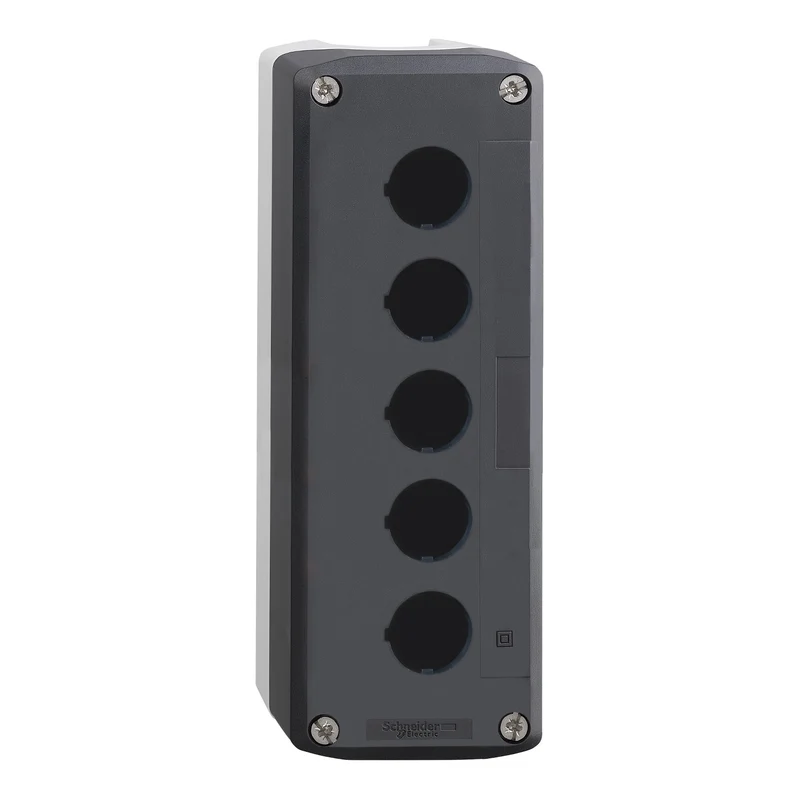

The Schneider Electric XALD05 is an empty control station enclosure from the Harmony XALD series, designed to house XB5 22 mm control and signalling elements. It features 5 cut-outs arranged in a single horizontal row with 5 vertical positions, offering IP66/IP67/IP69/IP69K protection for demanding industrial environments.

Technical specifications:

• Commercial reference: XALD05
• Manufacturer: Schneider Electric
• EAN: 3389110114843
• Series / range: Harmony XALD
• Product type: Empty control station
• Number of cut-outs: 5
• Compatible elements: XB5 22 mm control and signalling components
• Base colour: Light grey (RAL 7035)
• Cover colour: Dark grey (RAL 7016)
• Material: Polycarbonate
• Cable entry: 2 defined openings for cable entry, terminal capacity 14 mm; 2 defined openings for Pg 13 cable gland and ISO M20, terminal capacity 12 mm
• IP rating: IP66/IP67/IP69/IP69K per IEC 60529
• NEMA rating: NEMA 4X, NEMA 13
• IK rating: IK03 per IEC 62262
• Operating temperature: -40...70 °C
• Storage temperature: -40...70 °C
• Overvoltage category: Class II per IEC 60536
• Mounting: Rear mounting, front installation
• Assembly: User-assembled on site
• Weight: 0.322 kg
• Pressure wash resistance: 7,000,000 Pa at 55 °C, distance 0.1 m
• Standards: IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, CSA C22.2 No 14, UL 508, JIS C8201-5-1, JIS C8201-1
• Warranty: 18 months

Features and benefits:

• Multi-level IP protection (IP66/IP67/IP69/IP69K) suits washdown and outdoor installations
• Polycarbonate construction provides robust mechanical and chemical resistance
• Dual cable entry options accommodate Pg 13 glands and ISO M20 fittings for flexible wiring
• User-assembled design allows flexible configuration of XB5 pushbuttons, selector switches, and pilot lights on site
• Withstands high-pressure washing at 7,000,000 Pa - suitable for food, beverage, and chemical environments
• Plastic-free and recyclable cardboard packaging supports sustainability requirements

Applications:

• Machine control panels requiring customised pushbutton and indicator layouts
• Food and beverage processing lines where regular high-pressure washdowns are required
• Outdoor industrial stations exposed to dust, water ingress, or extreme temperatures
• Chemical and pharmaceutical plants needing corrosion-resistant enclosures
• Assembly stations and production lines where operators need localised start/stop or signalling controls

Compliant with IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, CSA C22.2 No 14, UL 508, JIS C8201-5-1, and JIS C8201-1. Part of the Schneider Electric Harmony XALD range.

Also known as: Schneider XALD05, Schneider Electric XALD05, Harmony empty control station enclosure, 5 cut-out pushbutton enclosure.
