Schneider XALD213 Control station

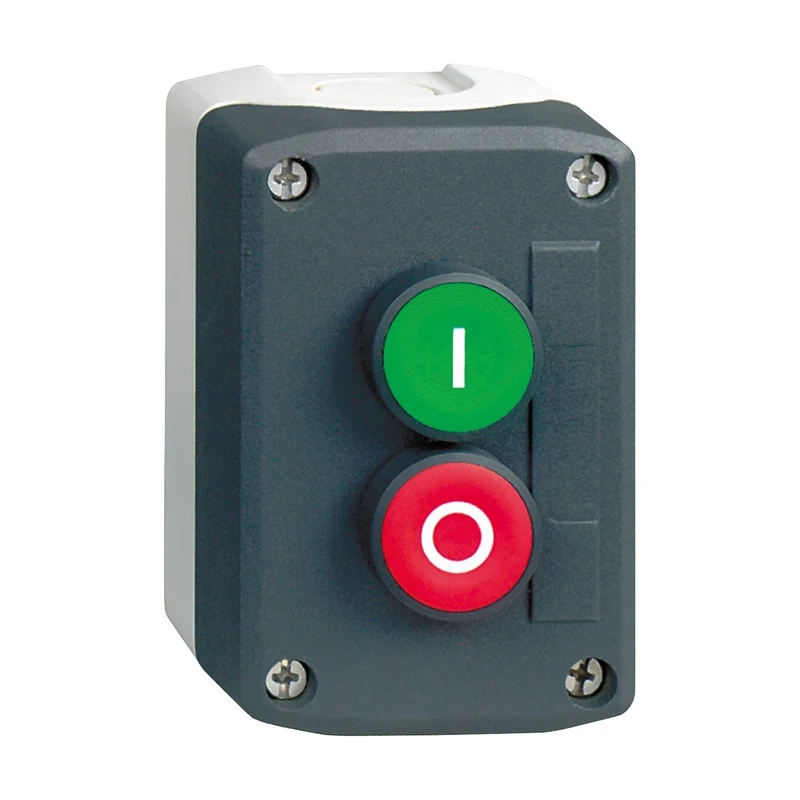

The XALD213 is a complete Harmony XALD control station from Schneider Electric, designed for Start-Stop operation with XB5 22 mm control and signalling elements. Its polycarbonate enclosure features a light grey body (RAL 7035) and dark grey cover (RAL 7016) with two flush pushbuttons - a green 'I' (1 NO) and a red 'O' (1 NC). Rated IP66/IP67/IP69/IP69K, it withstands pressure washing up to 7,000,000 Pa at 55°C.

Technical specifications:

• Commercial reference: XALD213
• Manufacturer: Schneider Electric
• EAN: 3389110114065
• Series / range: Harmony XALD
• Product type: Complete control station
• Contact configuration: Green 'I' 1 NO, red 'O' 1 NC flush pushbuttons
• Contact material: Silver alloy (Ag/Ni)
• Rated operational current (Ie): 6 A at 120 V AC-15; 3 A at 240 V AC-15; 1.2 A at 600 V AC-15
• Rated insulation voltage (Ui): 600 V (pollution degree 3)
• Rated impulse withstand voltage (Uimp): 6 kV
• Conventional thermal current (Ith): 10 A
• Short-circuit protection: 10 A gG fuse per IEC 60947-5-1
• Mechanical durability: 10,000,000 cycles
• Operating and storage temperature: -40...70°C
• IP rating: IP66, IP67, IP69, IP69K (IEC 60529)
• NEMA rating: NEMA 4X, NEMA 13
• IK rating: IK03 (IEC 62262)
• Cable entry: 2 openings for Pg 13 / ISO M20 cable glands
• Connection: Screw terminals, 0.22...1.5 mm²; tightening torque 0.8...1.2 N.m
• Weight: 0.233 kg

Features and benefits:

• IP66/IP67/IP69/IP69K ingress protection rated for wash-down and wet industrial environments
• Positive opening action on contacts, conforming to IEC 60947-5-1 annex K
• 10,000,000 cycle mechanical durability for long, reliable service life
• Compatible with the XB5 22 mm control and signalling element range
• TH treatment for protection in humid and tropical environments

Applications:

• Motor start/stop control on machine and process panels
• Industrial automation and operator control stations
• Food and beverage processing lines requiring wash-down rated controls
• Outdoor and harsh environment installations

Compliant with IEC 60947-5-1, IEC 60947-1, UL 508, CSA C22.2 No 14, and JIS C8201-5-1. Part of the Schneider Electric Harmony XALD range.

Also known as: Schneider XALD213, Schneider Electric XALD213, Harmony start-stop pushbutton station, 22 mm control station.
