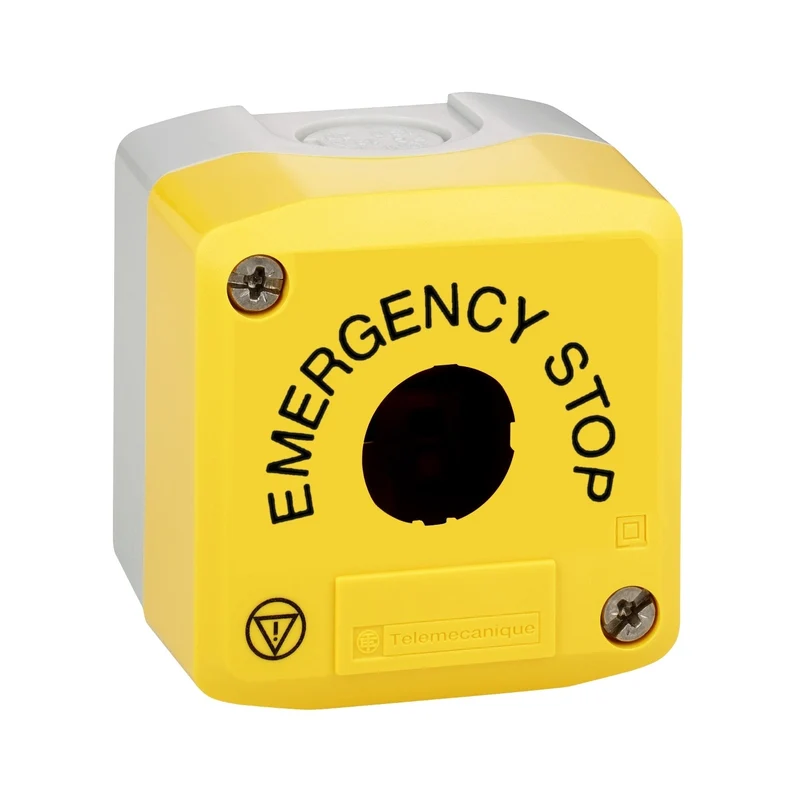

Schneider XALK01H29 Empty control station

The Schneider Electric XALK01H29 is an empty control station enclosure for emergency stop applications, featuring a yellow polycarbonate cover (RAL 1021) on a light grey base (RAL 7035) with a single cutout for XB5 22 mm control and signaling elements. IP66, IP67, IP69, and IP69K protection ratings make it suitable for demanding and washdown industrial environments.

Technical specifications:

• Commercial reference: XALK01H29
• Manufacturer: Schneider Electric
• EAN: 3389110959093
• Series / range: X-boxes (XALK)
• Function: Emergency stop
• Number of cutouts: 1
• Cover color: Yellow (RAL 1021)
• Base color: Light grey (RAL 7035)
• Material: Polycarbonate
• Compatible elements: XB5 22 mm control and signaling elements
• Cable entry: 2 openings for Pg 13 / ISO M20 cable glands (12 mm terminal capacity); 2 additional defined openings (14 mm terminal capacity)
• IP protection: IP66, IP67, IP69, IP69K (IEC 60529)
• IK protection: IK03 (IEC 62262)
• NEMA rating: NEMA 4X, NEMA 13
• Overvoltage category: Class II (IEC 60536)
• Operating temperature: -40...70°C
• Storage temperature: -40...70°C
• Mounting: Front or rear
• Weight: 0.322 kg
• Standards: IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 508, CSA C22.2 No 14, JIS C8201-1, JIS C8201-5-1

Features and benefits:

• Yellow cover with ISO 13850 emergency stop marking for instant operator identification
• IP69K rated for high-pressure washdown at 7 MPa, 55°C at 0.1 m distance
• Polycarbonate enclosure provides chemical and impact resistance in industrial environments
• Supports both front and rear mounting for flexible panel installation
• Customer-assembled design accepts user's choice of XB5 22 mm emergency stop operator

Applications:

• Emergency stop stations on machine tools and automated production lines
• Control panels in wet, dusty, or washdown industrial environments
• Food and beverage processing areas requiring IP69K-rated enclosures
• Outdoor or corrosive-atmosphere installations requiring NEMA 4X protection

Compliant with IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 508, CSA C22.2 No 14, and JIS C8201-5-1. Part of the Schneider Electric X-boxes (XALK) control station range.
