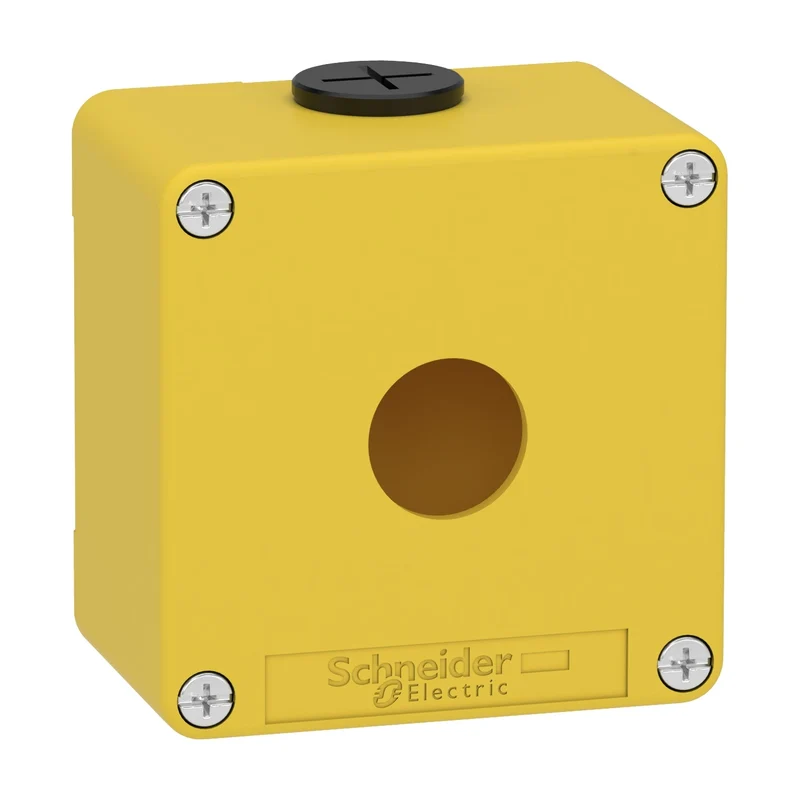

Schneider XAPK1201 Empty control station

The Schneider Electric XAPK1201 is a die-cast empty control station from the Harmony XAP series, designed to house 22 mm control and signalling elements. With a compact 80 x 80 mm front panel and a robust zinc alloy construction finished in yellow (RAL 1004), it offers a secure, weatherproof enclosure for industrial push-button and indicator installations.

Technical specifications:

• Commercial reference: XAPK1201
• Manufacturer: Schneider Electric
• EAN: -
• Series / range: Harmony XAP
• Product type: Die-cast empty control station
• Short device name: XAPK
• Intended for: 22 mm control and signalling elements
• Number of cut-outs: 1 x 22 mm
• Front panel size: 80 x 80 mm
• Usable depth: 49 mm
• Overall dimensions (W x H x D): 80 x 80 x 51.5 mm
• Weight: 0.455 kg
• Housing material: Die-cast zinc alloy
• Housing colour: Yellow (RAL 1004)
• Cable entry: 2 x cable gland to ISO standard, M20 x 1.5 thread
• IP protection: IP65 / IP66 / IP69 per EN/IEC 60529 and EN/IEC 60947-5-1
• Impact protection: IK07 per IEC 62262
• Electric shock protection class: Class I per IEC 61140
• UL enclosure type: Type 4 and Type 4X per UL 50 E
• Operating temperature: -40...70 °C
• Storage temperature: -40...70 °C
• Certifications: UL, cULus, EAC

Features and benefits:

• Triple IP rating (IP65/IP66/IP69) ensures protection against dust, water jets, and high-pressure washdowns
• Die-cast zinc alloy body provides high mechanical strength and durability in demanding industrial environments
• IK07 impact resistance rating protects against mechanical impacts on the enclosure
• M20 x 1.5 cable entry accommodates standard industrial cable glands for straightforward wiring
• UL Type 4X rating confirms suitability for corrosive environments as well as wet locations
• Plastic-free packaging and recycled cardboard support sustainable procurement requirements

Applications:

• Industrial machine control panels requiring weatherproof push-button or indicator housings
• Outdoor control stations on production lines or process plants exposed to washdown or rain
• Food and beverage or chemical processing facilities where high-pressure cleaning is routine
• Construction and heavy industry sites needing robust, impact-resistant operator interfaces

Compliant with EN/IEC 60529 and EN/IEC 60947-5-1 for IP ratings, IEC 62262 for impact protection, and IEC 61140 for electric shock protection class. Part of the Schneider Electric Harmony XAP range.
