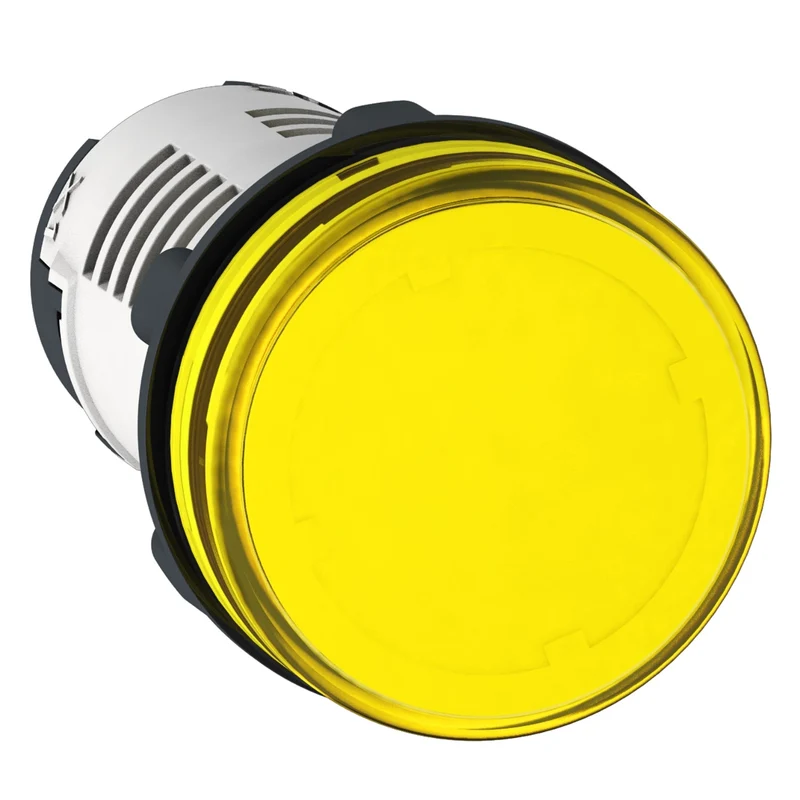

Schneider XB7EV05MP Harmony XB7 LED Pilot Light Yellow 230V
Beschreibung
The Schneider Electric XB7EV05MP is a round LED pilot light from the Harmony XB7 range, designed for 22 mm panel mounting and visual signalling applications at 230 V.
Technical specifications:
- Range: Harmony XB7
- Product type: Pilot light
- Device name: XB7
- Insulation voltage: 250 V (pollution degree 3) conforming to IEC 60947-1
- Light source: LED
- Mounting: Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
- Fixing: Fixing nut beneath head: 2...2.4 N.m
- Terminals: Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to IEC 60947-1
- Tightening torque: 0.8...1.2 N.m conforming to IEC 60947-1
- Width: 29 mm
- Height: 29 mm
- Depth: 54 mm
- Weight: 0.02 kg
- Standards: CSA C22.2 No 14
- IP rating: IP20 (rear face) conforming to IEC 60529
