Anbieter: SCHNEIDER ELECTRIC

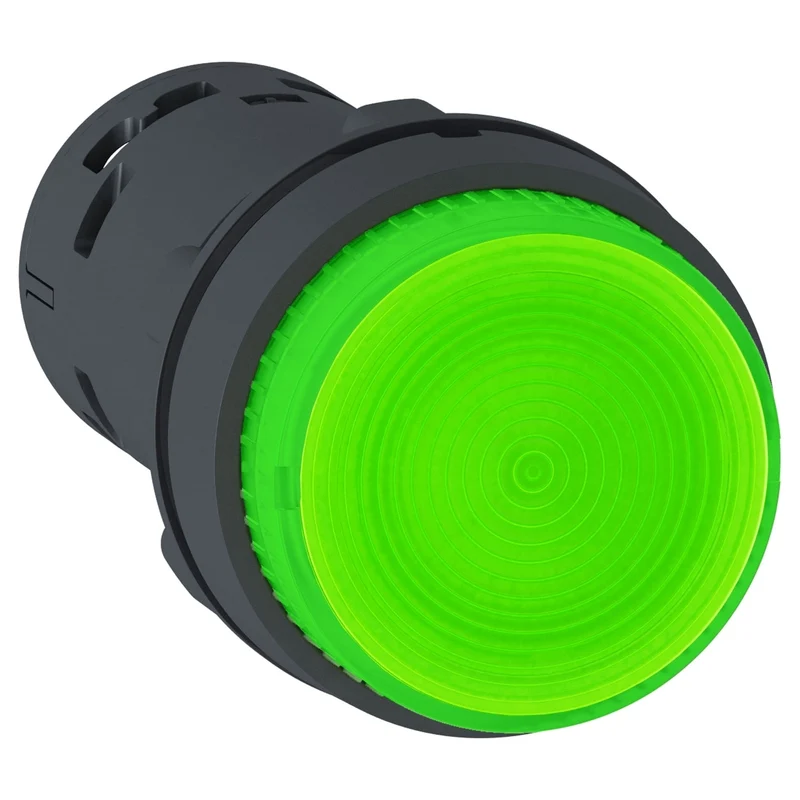

Schneider XB7NW33M1 Harmony XB7 Illuminated Push-Button LED Green 1NO 230V 22mm

7,19 €4,88 €Im Angebot
Menge

Beschreibung

The XB7NW33M1 is a Harmony XB7 illuminated push-button from Schneider Electric, designed for 22 mm panel cutouts. Fitted with an LED light source and a spring-return mechanism, it delivers a green momentary 1NO contact with 230 V illumination for control and signalling applications.

  • Reference: XB7NW33M1
  • Range: Harmony XB7
  • Product type: Illuminated push-button
  • Short device name: 10
  • Mounting diameter: 22 mm
  • Contact configuration: 1NO (normally open)
  • Illumination: LED, green, 230 V
  • Action: Spring return (momentary)
  • IP rating (front): IP65 per IEC 60529
  • IP rating (rear): IP20 per IEC 60529
