Schneider ZBVB5 Harmony XB4 XB5 Orange LED Light Block 24V AC/DC

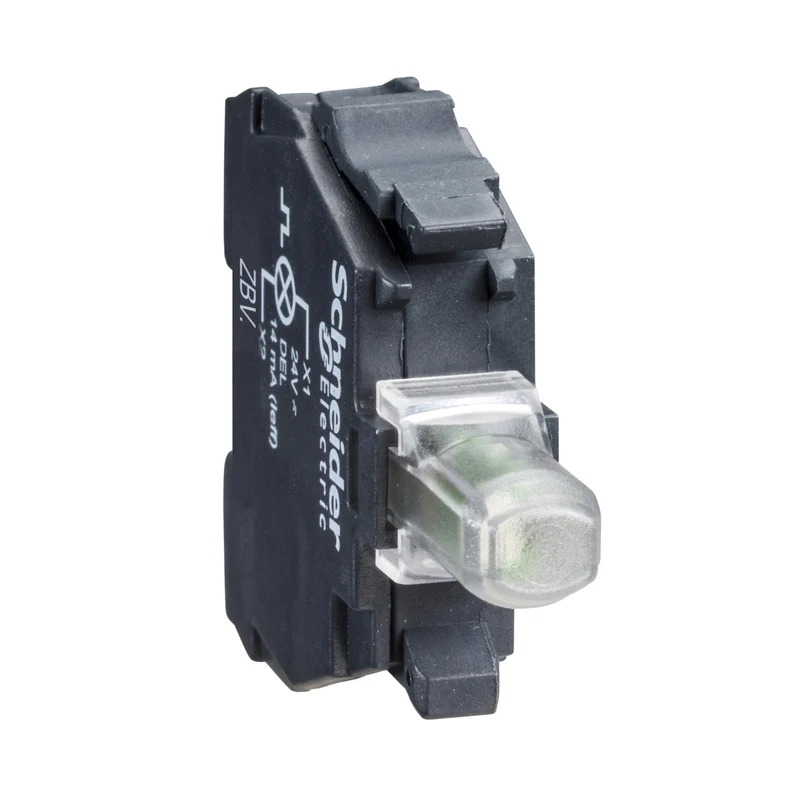

The Schneider Electric ZBVB5 is an orange LED light block for 22mm push-button heads, designed for use in Harmony XB4 and XB5 control stations. It provides steady visual signalling with a direct-supply integral LED rated at 24V AC/DC, offering a service life of 100,000 hours at rated voltage and 25°C.

Technical specifications:

• Commercial reference: ZBVB5
• Manufacturer: Schneider Electric
• EAN: 3389110089646
• Series / range: Harmony XB4, Harmony XB5
• Product type: Light block
• Device short name: ZBV
• Light source colour: Orange
• Light source: Protected integral LED
• Signalling type: Steady
• Rated supply voltage: 24V AC/DC at 50/60 Hz
• Supply voltage limits: 19.2-30V DC / 21.6-26.4V AC
• Current consumption: 18 mA
• Service life: 100,000 h at rated voltage and 25°C
• Mounting: Front mounting
• Connection: Screw clamp terminals, up to 2 x 1.5 mm² with cable end (EN 60947-1)
• Tightening torque: 0.8-1.2 N.m (EN 60947-1)
• IP protection rating: IP20 (IEC 60529)
• Operating temperature: -40 to 70°C
• Storage temperature: -40 to 70°C
• Surge withstand: 1 kV (IEC 61000-4-5)
• Resistance to fast transients: 2 kV (IEC 61000-4-4)
• Electromagnetic emission: Class B (IEC 55011)
• Protective treatment: TH
• Product weight: 0.017 kg
• Sale unit: 5 pieces per indivisible quantity
• Certifications: UL listed, CSA

Features and benefits:

• Integral LED design eliminates bulb replacement and extends service life to 100,000 hours
• Wide supply voltage tolerance (19.2-30V DC / 21.6-26.4V AC) simplifies integration into varied control circuits
• Front mounting design allows easy installation and replacement on 22mm head push-button stations
• TH protective treatment ensures reliable operation across harsh environments from -40 to 70°C
• Strong EMC performance with resistance to fast transients (2 kV) and electrostatic discharge (6 kV contact / 8 kV free air)

Applications:

• Operator indication on industrial machine control panels and automation stations
• Status signalling in control desks using Harmony XB4 or XB5 push-button assemblies
• Warning or status indication in process control and manufacturing environments
• Panel builder assemblies requiring steady-state visual feedback at 24V control voltage

Compliant with EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508, CSA C22.2 No 14, JIS C8201-1, and JIS C8201-5-1. Part of the Schneider Electric Harmony XB4 and XB5 range.

Also known as: Schneider ZBVB5, Schneider Electric ZBVB5, Harmony XB4 orange LED indicator, 22mm pilot light block 24V.
