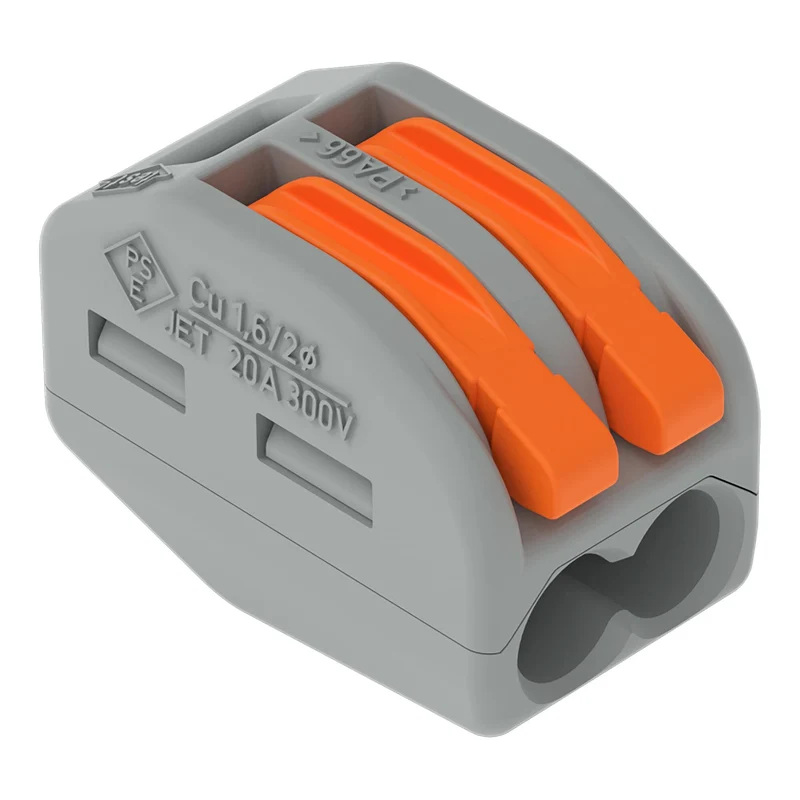

WAGO 222-412 Splicing Connector with Lever 2-Pole 4 mm² 32 A Pack of 50

The WAGO 222-412 is a 2-conductor splicing connector with levers from the 222 Series, designed to connect all conductor types with a maximum cross-section of 4 mm². It uses CAGE CLAMP® technology with side-entry wiring to join solid, stranded, and fine-stranded conductors quickly and without tools, at a rated voltage of 400 V and rated current of 32 A.

Technical specifications:

• Catalog number: 222-412
• Manufacturer: WAGO
• Series: 222
• Type: Splicing connector with levers
• Connection technology: CAGE CLAMP®
• Actuation type: Lever
• Clamping units: 2
• Wiring direction: Side-entry
• Rated voltage: 400 V
• Rated impulse withstand voltage: 4 kV
• Rated current: 32 A
• Connectable conductor materials: Copper, Aluminum
• Solid conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
• Stranded conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
• Fine-stranded conductor: 0.08 - 4 mm² / 28 - 12 AWG
• Strip length: 9 - 10 mm / 0.35 - 0.39 inches
• Dimensions (W × H × D): 12.4 × 14.5 × 20.5 mm
• Color: gray; actuator color: orange
• Weight: 3.1 g
• Flammability class: UL94 V0
• Ambient operating temperature: +40 °C
• Continuous operating temperature: 85 °C
• Country of origin: Germany
• GTIN: 4050821346470
• RoHS: Compliant, No Exemption
• Certifications: ENEC 15 (EN 60998), UL 486C (E69654), UL 467 (E201573), ABS, LR (EN 60998, LR2446364TA), PRS (EN 60998)

Features and benefits:

• CAGE CLAMP® connection is tool-free and maintenance-free - no ferrule crimping required before inserting conductors
• Lever operation: lift lever to open the clamping unit, insert stripped conductor (9 - 10 mm), lower lever to close
• Transparent housing enables immediate visual inspection of solid, stranded, and fine-stranded conductor contact
• Accepts copper and aluminum conductors, eliminating the need for separate connectors per conductor type
• Holds ENEC 15, UL, and marine approvals (ABS, LR, PRS) for broad installation compliance

Applications:

• Wiring intercom systems
• Installing electrical ovens
• Connecting fine-stranded conductors in junction boxes
• Splicing mixed conductor types in residential and commercial electrical installations

Also known as: WAGO 222-412, WAGO 222 Series lever splicing connector.
