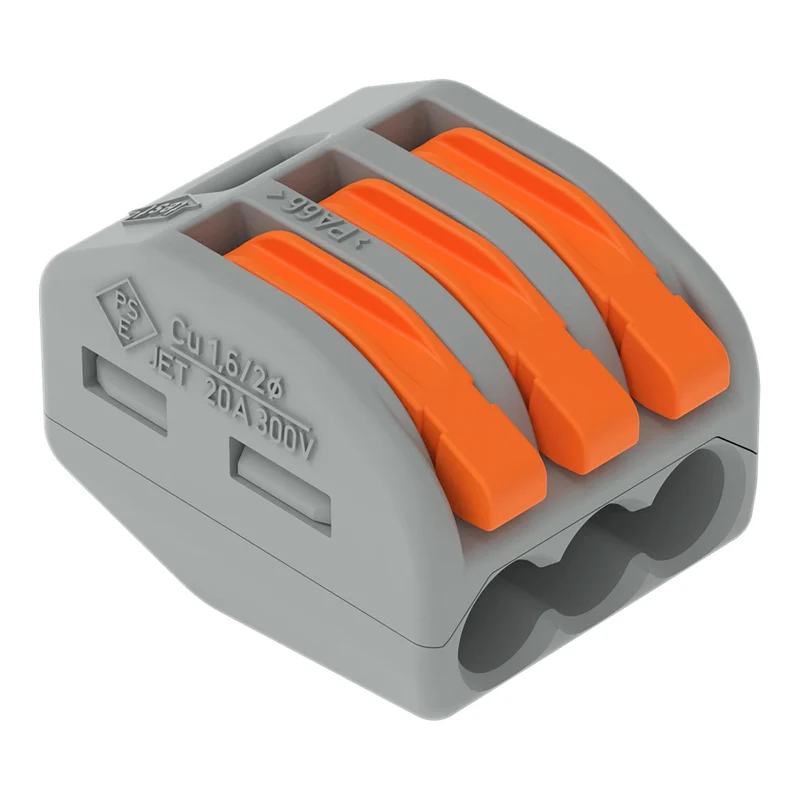

WAGO 222-413 Splicing Connector with Levers 3-Conductor 4 mm² Pack of 50

The WAGO 222-413 is a 3-conductor splicing connector with levers from the 222 Series, designed for all conductor types - solid, stranded, and fine-stranded. Rated at 400 V and 32 A, it accepts conductor cross-sections from 0.08 mm² up to 4 mm² (fine-stranded) and uses WAGO's CAGE CLAMP® technology for tool-free termination. The datasheet cites intercom system wiring and electrical oven installation as representative applications.

Technical specifications:

• Catalog number: 222-413
• Manufacturer: WAGO
• Series: 222
• Clamping units: 3 (1 potential)
• Connection technology: CAGE CLAMP®
• Actuation type: Lever (orange actuator)
• Rated voltage: 400 V (Overvoltage category II, Pollution degree 2)
• Rated current: 32 A
• Rated impulse withstand voltage: 4 kV
• Solid conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
• Stranded conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
• Fine-stranded conductor: 0.08 - 4 mm² / 28 - 12 AWG
• Connectable conductor materials: Copper, Aluminum
• Strip length: 9 - 10 mm (0.35 - 0.39 in)
• Wiring direction: Side-entry
• Dimensions (W × H × D): 17 × 14.5 × 20.5 mm
• Weight: 4.3 g
• Housing color: gray
• Flammability class: UL94 V0
• Ambient operating temperature: max. +40 °C
• Continuous operating temperature: 85 °C
• Country of origin: DE
• GTIN: 4017332955676
• 500 pcs (full PU)
• Certifications: ENEC (EN 60998), UL 486C (E69654), UL 467 (E201573), ABS, LR (EN 60998), PRS (EN 60998)
• RoHS: Compliant, No Exemption

Features and benefits:

• Tool-free connection: lift the orange lever to open, insert a stripped conductor to 9 - 10 mm, lower to clamp
• Accepts all conductor types and both copper and aluminum in a single connector
• Transparent housing enables immediate visual inspection to confirm correct conductor contact
• CAGE CLAMP® high spring-force technology holds conductors securely once the lever is closed
• ENEC, UL, and marine approvals (ABS, LR, PRS) for wide installation compliance

Applications:

• Wiring intercom systems and low-voltage signal circuits
• Connecting conductors for electrical ovens and high-load appliances
• Splicing mixed conductor types (solid, stranded, fine-stranded) in junction boxes
• Installations requiring connections of both copper and aluminum conductors

Also known as: WAGO 222-413, WAGO 222 Series 3-conductor lever splicing connector.
