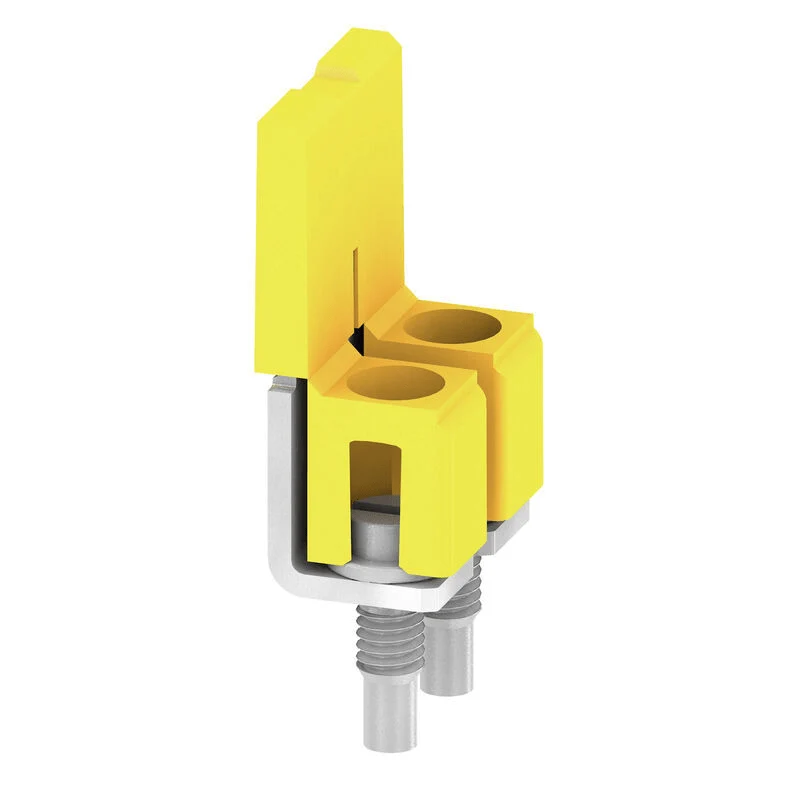

Weidmuller 1051960000 WQV 4/2 Cross-connector 41A

The Weidmuller WQV 4/2 (order no. 1051960000) is a 2-pole screwable cross-connector for modular terminal blocks, used to distribute or multiply a potential across adjoining terminals without additional wiring.

• Number of poles: 2
• Rated current: 41 A
• Rated voltage: 400 V
• Pitch: 6.10 mm
• Insulated: Yes
• Colour: Yellow
• Type of fixing: Screwed in
• Dimensions (W × H × D): 10.6 mm × 7.6 mm × 18 mm
• Net weight: 2.32 g
• Basic material: PA 66, UL 94 V-0 flammability rating
• Continuous operating temperature: −60 °C to 85 °C
• Storage temperature: −25 °C to 55 °C
• RoHS: Compliant without exemption; REACH SVHC: no substances above 0.1 wt%
