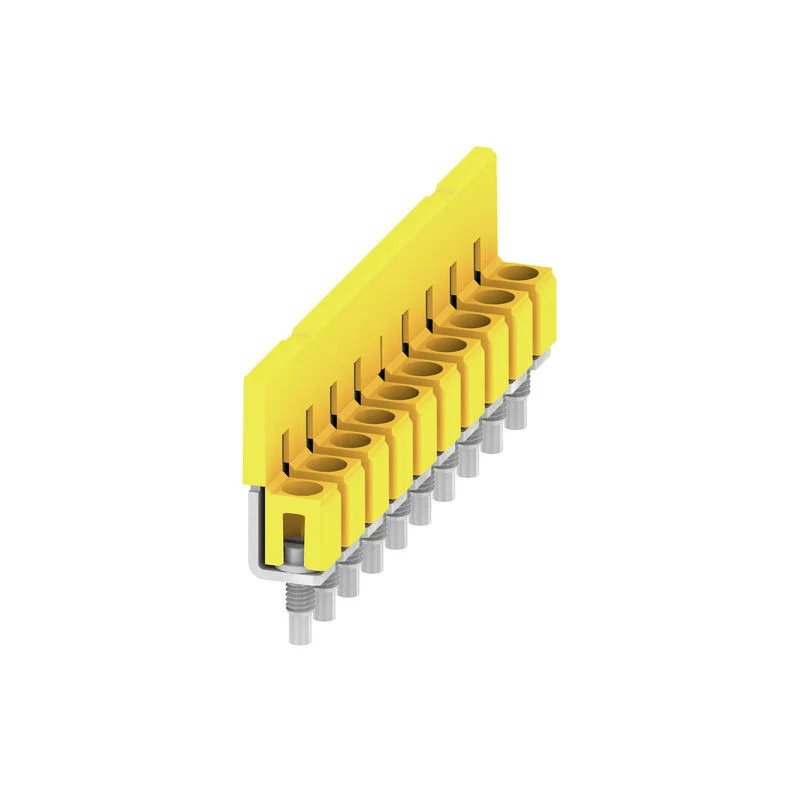

Weidmuller 1052060000 WQV 4/10 W-series terminal cross-connector 10P

The Weidmüller WQV 4/10 (order no. 1052060000) is a 10-pole screwable cross-connector for modular terminal blocks, used to distribute or multiply a potential across adjoining terminals without additional wiring. It screws directly into compatible terminals and maintains contact reliability even when individual poles are broken out.

• Order number: 1052060000
• Type: WQV 4/10
• Number of poles: 10
• Rated current: 41 A
• Rated voltage: 400 V
• Pitch: 6.10 mm
• Width: 7.6 mm (0.2992 in)
• Height: 59.4 mm (2.3386 in)
• Depth: 18 mm (0.7087 in)
• Net weight: 12.15 g
• Colour: Yellow
• Insulated: Yes
• Type of fixing: Screwed in
• Base material: PA 66, UL 94 V-0 flammability rating
• Continuous operating temperature: −60 °C to +85 °C; storage: −25 °C to +55 °C
• RoHS: Compliant without exemption; REACH SVHC: no substances above 0.1 wt%
