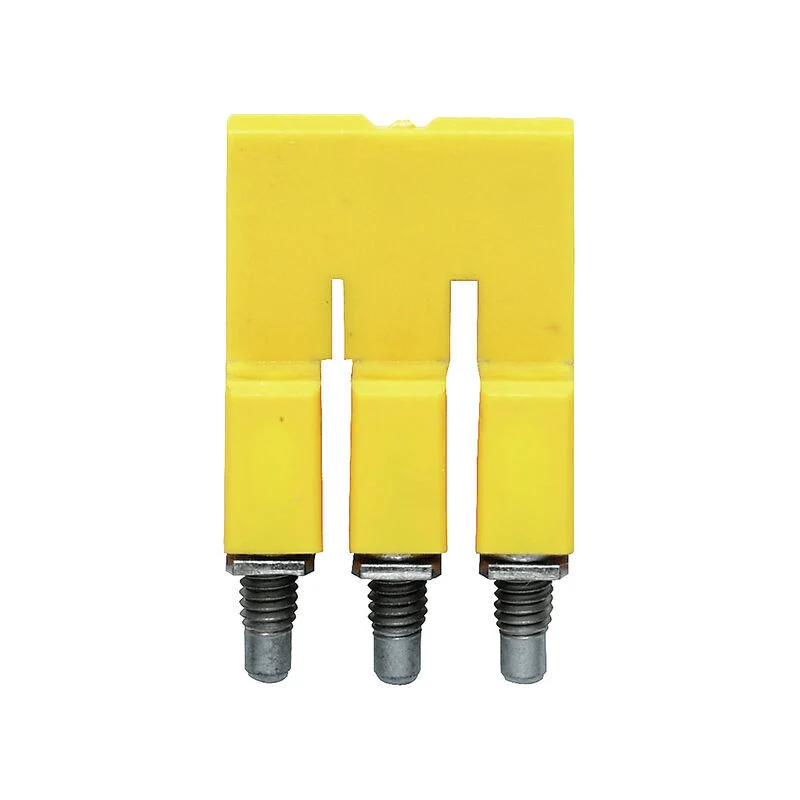

Weidmuller 1053760000 WQV 2.5/3 W-series terminal cross-connector, 3P

The Weidmüller WQV 2.5/3 (order no. 1053760000) is a 3-pole screwed cross-connector for modular terminal blocks, distributing a single potential to adjoining terminals without additional wiring. Contact reliability is maintained even when poles are broken out. The yellow, insulated component fixes by screwing in and mounts directly onto compatible terminals.

• Number of poles: 3
• Rated voltage: 400 V
• Nominal current: 32 A
• Pitch: 5.10 mm
• Fixing type: Screwed in
• Insulated: Yes
• Colour: Yellow
• Dimensions (W × H × D): 7 × 14.2 × 18 mm
• Net weight: 2.26 g
• Continuous operating temperature: −60 °C to +85 °C
• Storage temperature: −25 °C to +55 °C
• Basic material: PA 66, UL 94 V-0
• Compliance: RoHS compliant without exemption; no REACH SVHC above 0.1 wt%
