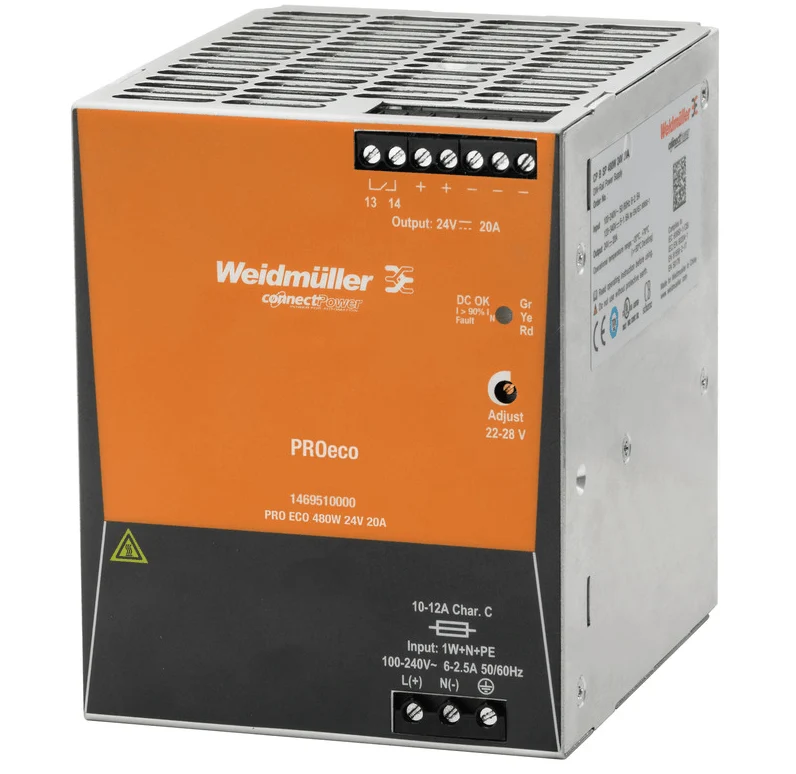

Weidmuller 1469510000 PRO ECO DIN Power Supply 480W 24V 20A

The Weidmuller 1469510000 PRO ECO is a DIN rail AC/DC power supply with 480W output power at 24VDC/20A. Wide-range AC input (85-264V) allows worldwide use. Slim design minimises DIN rail space in control panels and machine cabinets.

Technical specifications:

• Part number: 1469510000
• Series: PRO ECO
• Output voltage: 24VDC
• Output current: 20A
• Output power: 480W
• Input voltage: 85-264V AC (universal)
• Input frequency: 47-63Hz
• Mounting: DIN rail (EN 60715)
• Cooling: Convection (fanless)
• IP rating: IP20
• Standard: IEC 61010-1

Applications:

• 24VDC supply for PLC systems, sensors and actuators in control panels
• Power supply for machine I/O, field devices and DIN rail components
• Industrial automation and process control panel power rails

Also known as: Weidmuller 1469510000, PRO ECO 480W 24V, DIN rail PSU 480W 24VDC, Weidmuller power supply 20A 24V.
