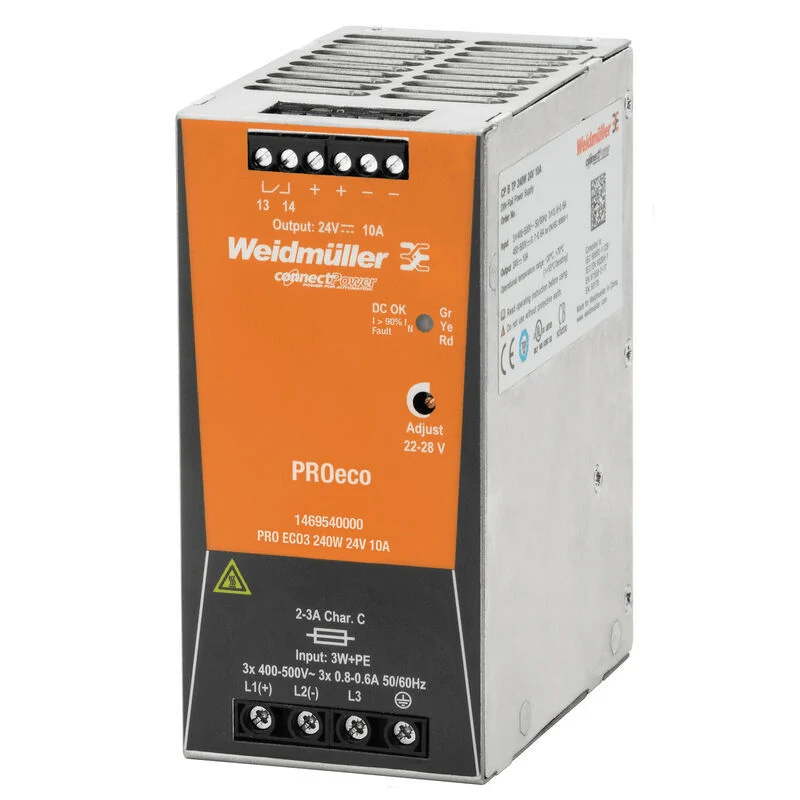

Weidmuller 1469540000 Power supply 24V

The Weidmüller PRO ECO3 240W 24V 10A (order no. 1469540000) is a switch-mode power supply unit from the PROeco 2nd generation series, designed for automation applications and space-constrained installations such as flat control cabinets. It accepts wide-range three-phase AC and DC inputs and delivers a regulated 24 V DC output. The unit is compatible with DC UPS systems, electronic load monitoring modules, and diode modules.

• Output voltage: 24 V DC ± 1 %
• Output power: 240 W; rated output current: 10 A
• AC input voltage range: 3 × 320–575 V AC / 2 × 360–575 V AC
• DC input voltage range: 450–800 V DC
• AC input frequency: 47–63 Hz
• Inrush current: max. 50 A
• Residual ripple: < 50 mV peak-to-peak at 24 V DC, rated current
• Overload protection: Yes
• Surge protection: Varistor
• Connection system: Screw connection (input and output)
• Status indicator: Three-colour LED
• Dimensions (W × H × D): 60 × 125 × 100 mm; net weight: 900 g
• Operating temperature: −25 °C to +70 °C; storage: −40 °C to +85 °C
• Certifications: cURus (E255651), cULus (E258476); RoHS compliant with exemptions 7a, 7cI
