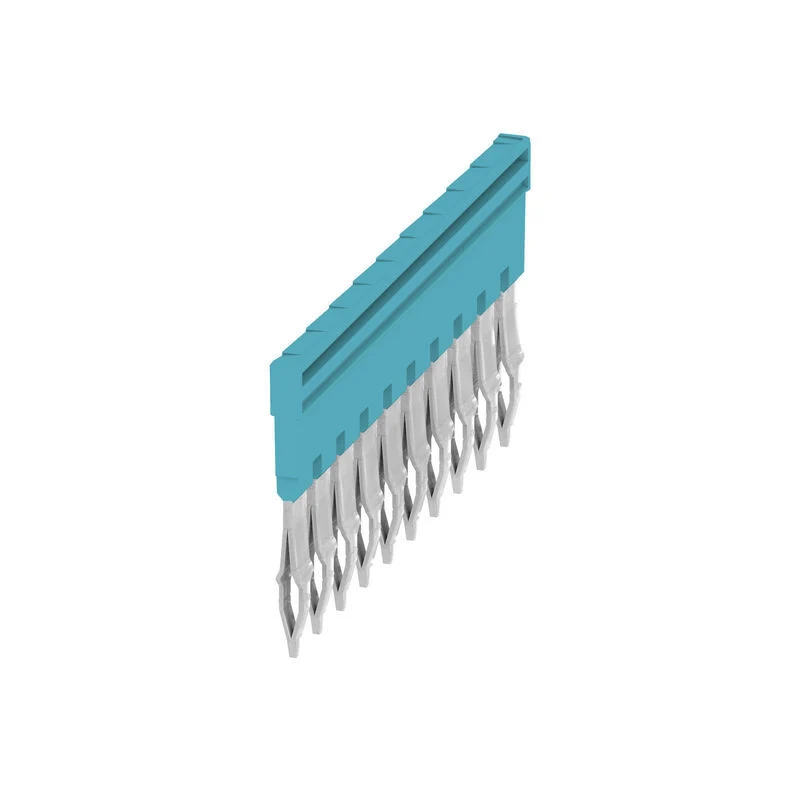

Weidmuller 1528230000 ZQV 4N/10 BL Cross-connector (terminal) 32A, blue

The Weidmüller ZQV 4N/10 BL (order no. 1528230000) is a 10-pole, plugged, insulated cross-connector for modular terminal blocks, used to distribute or replicate a potential to adjoining terminals without additional wiring.

• Type / fixing: Cross-connector (terminal), plugged
• Number of poles: 10
• Nominal current: 32 A
• Rated voltage: 400 V (reduced to 25 V when cut cross connections with blank cut edges are used)
• Pitch: 6.10 mm
• Insulated: Yes; colour: blue
• Dimensions (W × D × H): 58.7 mm × 27.95 mm × 2.8 mm
• Net weight: 7.56 g
• Continuous operating temperature: −60 °C to +130 °C
• Ambient temperature: −5 °C to +40 °C
• Storage temperature: −25 °C to +55 °C
• Basic material: Wemid; flammability rating UL 94 V-0
• Explosion-tested version: Yes
• RoHS / REACH: RoHS compliant without exemption; no SVHC above 0.1 wt%

Note: Due to stability and temperature considerations, a maximum of 60% of contact elements may be broken out.
