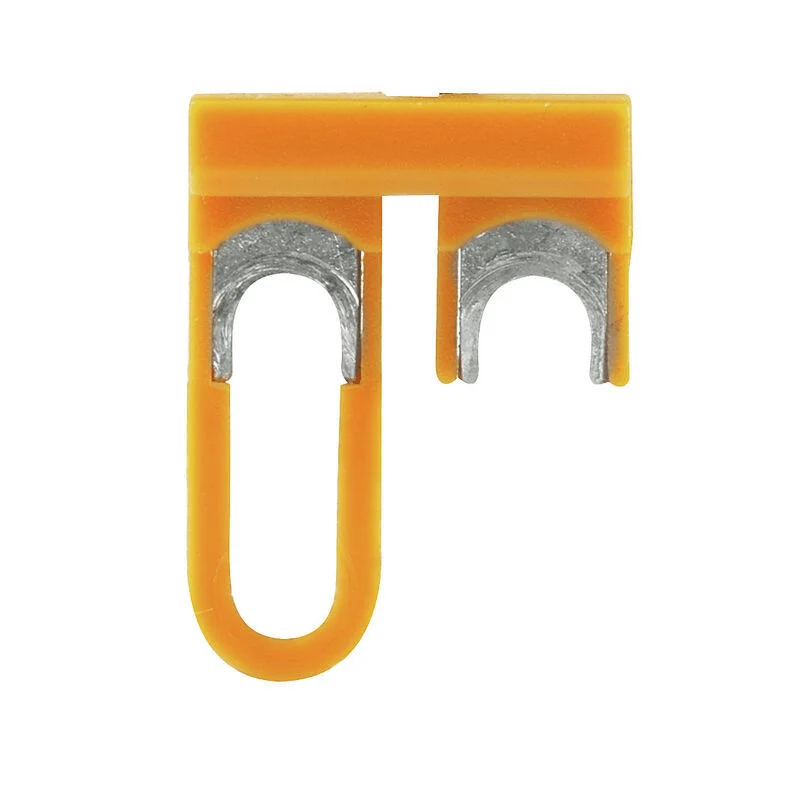

Weidmuller 1604270000 WKS 1/2 Cross-connection slider 2P

The Weidmüller WKS 1/2 (1604270000) is a 2-pole insulated screw-in cross-connection slider for modular terminal blocks. It distributes or replicates a potential to adjoining terminals without additional wiring, and maintains contact reliability in the terminal blocks even when individual poles are broken out.

• Number of poles: 2
• Nominal current: 41 A
• Rated voltage: 400 V
• Pitch: 14.10 mm
• Insulated: Yes
• Colour: Orange
• Type of fixing: Screw-in; direct mounting
• Basic material: Polyamide 66
• UL 94 flammability rating: V-2
• Ambient temperature range: −5 °C to 40 °C
• Continuous operating temperature range: −50 °C to 100 °C
• Dimensions (W × H × D): 6.1 × 14.1 × 18.8 mm; net weight: 1.48 g
• RoHS: Compliant without exemption
• REACH SVHC: No substance above 0.1 wt%
