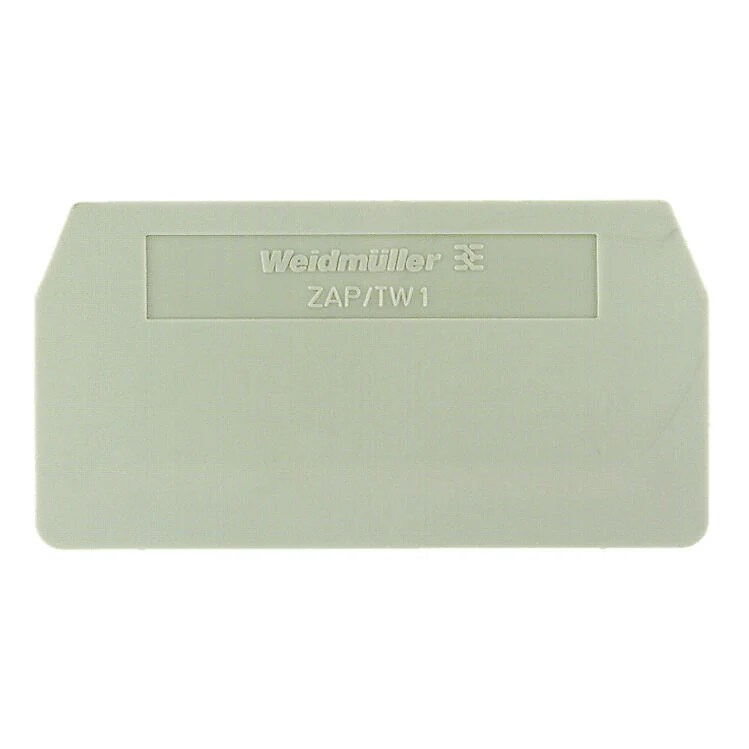

Weidmuller 1608740000 ZAP/TW 1 Z-series End plate

The Weidmüller ZAP/TW 1 (order no. 1608740000) is an end and intermediate plate for Z-series terminal blocks. It closes the terminal block row on the sides, provides optical and electrical separation between different potentials and functional groups, protects against accidental contact with live parts, and ensures a clean, stable finish within the control cabinet.

• Series compatibility: Z-series terminal blocks
• Function: End and intermediate plate
• Material: Wemid
• Colour: Dark beige
• Flammability rating: UL 94 V-0
• Depth: 30.6 mm
• Height: 59.3 mm
• Width: 2 mm
• Net weight: 2.86 g
• Continuous operating temperature: −50 °C to +120 °C
• Storage temperature: −25 °C to +55 °C
• Mounting: Snap-on; direct mounting
• RoHS / REACH: RoHS compliant without exemption; no SVHC above 0.1 wt%
