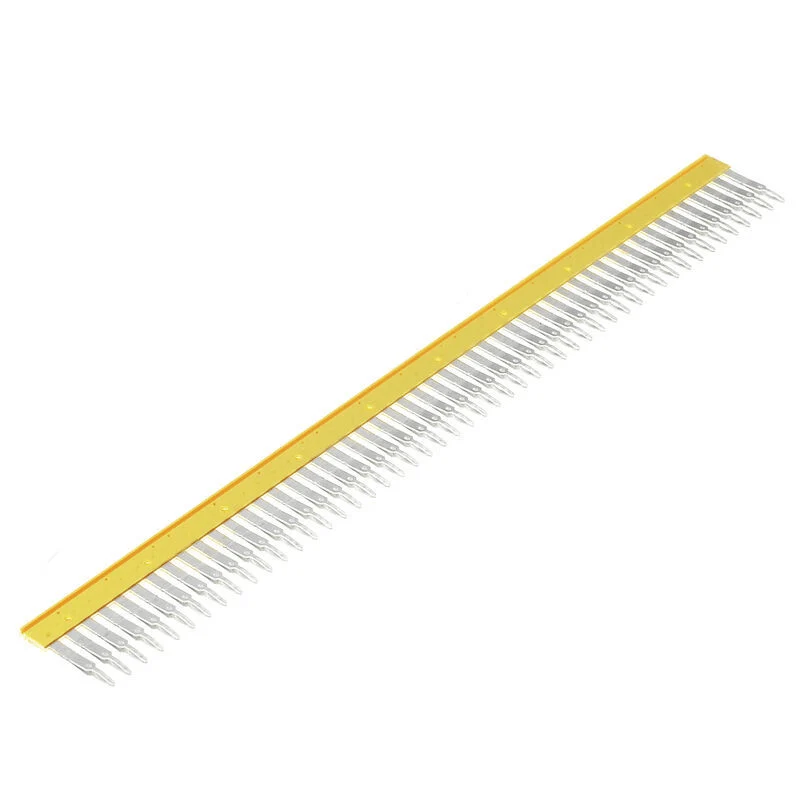

Weidmuller 1697540000 ZQV 2.5/50 Z-series , terminal cross-connector, 50P

The Weidmuller ZQV 2.5/50 (order no. 1697540000) is a 50-pole pluggable cross-connector accessory for modular terminal blocks. It distributes or multiplies a potential across adjoining terminals, eliminating additional wiring effort while maintaining contact reliability even when poles are broken out.

• Order number: 1697540000
• Number of poles: 50
• Rated voltage: 400 V (reduced to 25 V when cut cross connections with bare cut edges are used)
• Nominal current: 24 A
• Pole pitch: 5.10 mm
• Type of fixing: Plugged; direct mounting
• Dimensions (D × H × W): 27.6 mm × 253.3 mm × 2.8 mm
• Net weight: 34.46 g
• Body material: Wemid, yellow
• Flammability rating: UL 94 V-0
• Continuous operating temperature: −60 °C to +130 °C
• Storage temperature: −25 °C to +55 °C
• RoHS status: Compliant without exemption; no REACH SVHC above 0.1 wt%
• Important: A maximum of 60% of contact elements may be broken out; cross connections with more than 10 poles have bare cut edges as supplied.
